Description

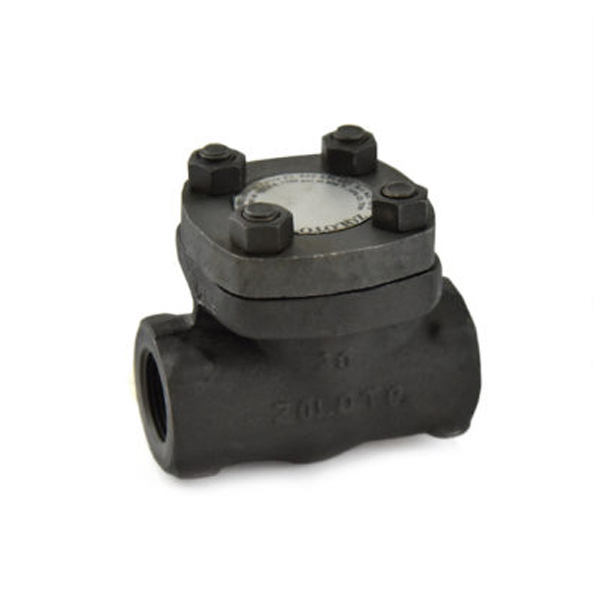

The Zoloto - 25 mm Class 800 Forged Steel Standard Bore Horizontal Check Valve is a forged steel check valve designed for horizontal applications. 25 mm Class 800 Forged Steel Standard Bore Horizontal Check Valve has a standard bore size of 25 mm and can handle Class 800 pressure ratings. The Class 800 Forged Steel Standard Bore Horizontal Check Valve features a bolted bonnet construction and can withstand high temperatures and corrosive environments. Forged Steel Standard Bore Horizontal Check Valve is also equipped with a disc that provides tight shut-off when the flow reverses direction. Standard Bore Horizontal Check Valve has Design Standard API 602/BS EN ISO 15761 (BS 5352). In addition, this Horizontal Check Valve has bolted cover. This check valve is suitable for air, water, and oil.
Product Specifications:
Brand: Zoloto
Country of Origin: India
Material: forged steel
Product: standard bore horizontal check valve
Size: 25 mm
Type: screwed
Test pressure: Shell: 3000 psig, Seat:2200 psig
Product code: 1076
Cover: Forged Carbon Steel
Stud: Alloy Steel
Nut: Alloy Steel
Identification Plate: Aluminium
Body: Forged Carbon Steel
Body Seat Ring: Stainless Steel
Disc: Stainless Steel
Gasket: Spiral Wound
Key Features:
High temperature and corrosion resistance
Class 800 pressure rating
Disc provides tight shut-off when the flow reverses direction.

Product Specifications

GENERAL

Brand:
Zoloto
Material:
Forged Steel
Model:
1076
Product:
Standard Bore Horizontal Check Valve
Size:
25 mm
