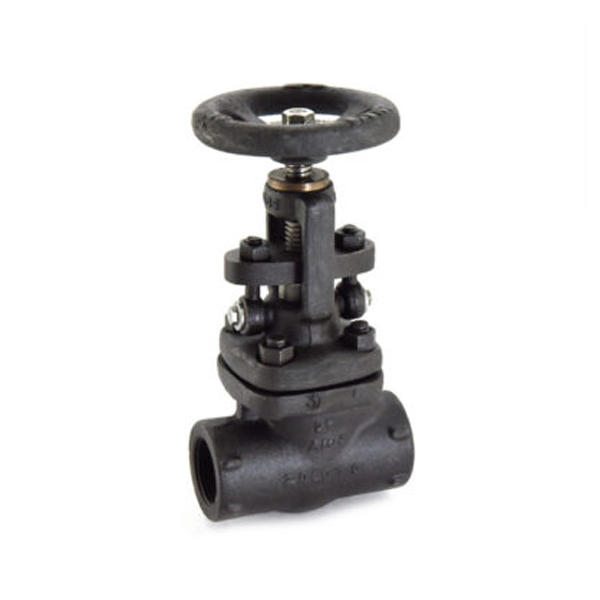

The Zoloto - 10 mm Class 800 Forged Steel Full Bore Globe Valve is a high-quality item. The good performance of the 10 mm Class 800 Forged Steel Full Bore Globe Valve is commonly regarded. The Class 800 Forged Steel Full Bore Globe Valve is made with superior material and cutting-edge methodology, ensuring that they maintain the highest standard.
Product Specifications:
Brand Name: Zoloto
Maximum Operating Temperature: 425 Degree Celsius
Size (mm): 10
Size (Inch): 3/8 inch
End Connection: Female Ends
Material:
Body: Forged Carbon Steel
Body Seat Ring: Stainless Steel
Stem: Stainless Steel
Disc: Stainless Steel
Gasket: Spiral Wound S.S. (Type 316) Graphite Filled
Bonnet: Forged Carbon Steel
Bonnet Nut: Alloy Steel
Gland: Stainless Steel
Gland Flange: Carbon Steel
Test Pressure (Hydrostatic):
Shell: 3000 psig
Seat: 2200 psig
Product Code: 1074A
Key Features:
The body and bonnet are phosphor-coated to ensure maximum rust resistance.
Outside Screw, Rising Stem, Yoke Type, Bolted Bonnet.
Female Ends Screwed to NPT / BSPT / Socket Welded to ANSI B16.11.
