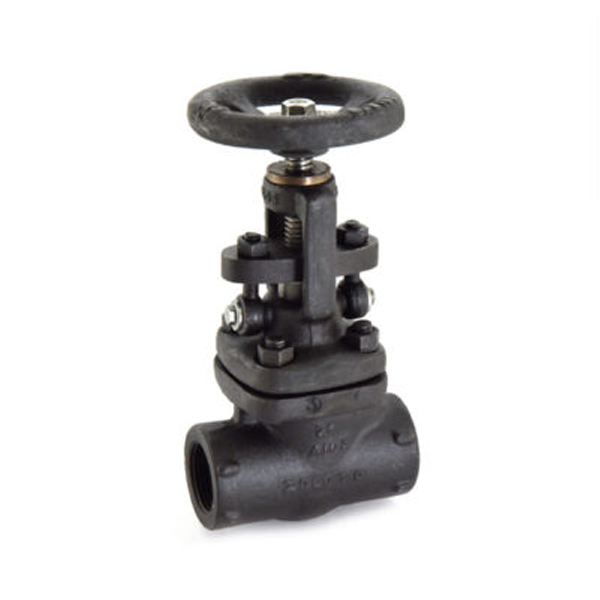

The Zoloto - 40 mm Class 800 Forged Steel Standard Bore Globe Valve is a type of Class 800 Forged Steel Standard Bore Globe Valve. This 40 mm Class 800 Forged Steel Standard Bore Globe Valve is designed to use under high temperatures. The phosphate body and bonnet of Class 800 Forged Steel Standard Bore Globe Valve reduces the risk of rusting. The Standard Bore Globe Valves are less prone to thermal fatigue. These Forged Globe Valves tend to handle high pressures as well. These valves are characterised by the bolted bonnet, outside screw, yoke type and rising stem.
Product Specifications:
Brand: Zoloto
Made in: India
Product Code: 1074
Size: 40 mm
Design standard: API 602 / BSEN ISO 15761 (BS 5352)
Test pressure: Shell (Hydrostatic): 207 bar (3000 psig)
Seat & Back Seat(Hydrostatic) : 152 bar (2200 psig)
Seat (Pneumatic) : 6.9 bar (100 psig)
Operating temperature: 425°C
Key Features:
Phosphated body and bonnet that ensure resistance to rust
Screwed Female Ends to BSPT / NPT / Socket Welded to ANSI B16.11
Suitable for steam, water, air, oil and gas
