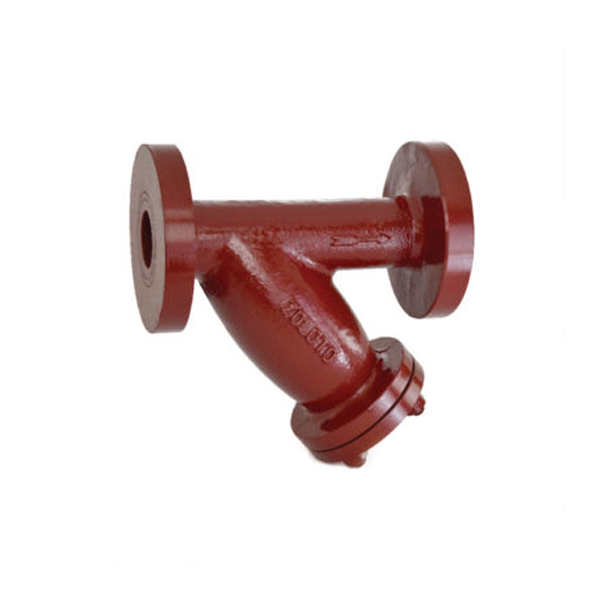

The Zoloto - 25 mm Y Type Cast Steel Flanged Strainer is a mechanical masterpiece. The 25 mm Y Type Cast Steel Flanged Strainer is made with high-quality raw materials and cutting-edge technology to meet the requirements of local officials. The screen is accompanied by the body and covered by a stainless steel perforated sheet screen. A drain plug is used to extract the gathered particles. The Y Type Cast Steel Flanged Strainer has a fine finish and smooth contours to minimise pressure drop inside the strainer. The strainer is more efficient when it has a larger screening area. It is also suitable for the application of thermic fluids.
Product Specifications:
Brand Name: Zoloto
Maximum Operating Temperature: 425 Degree Celsius
Size (mm): 25 mm
Size (Inch): 1 inch
End Connection: Flanged Ends
Material:
Body: Cast Steel
Disc: Stainless Steel
Screen: Stainless Steel
Bonnet: Cast Steel
Gasket: Steam Jointing Sheet
Nuts: H.T. Steel
Body Seat Ring: Stainless Steel
Studs: Alloy Steel
Stem: Stainless Steel
Test Pressure (Hydrostatic):
Shell: 700 psig
Seat: 350 psig
Key Features:
BS 10 Table 'J' Flanged Ends.
Ideal For: Water, Oil, Steam.
