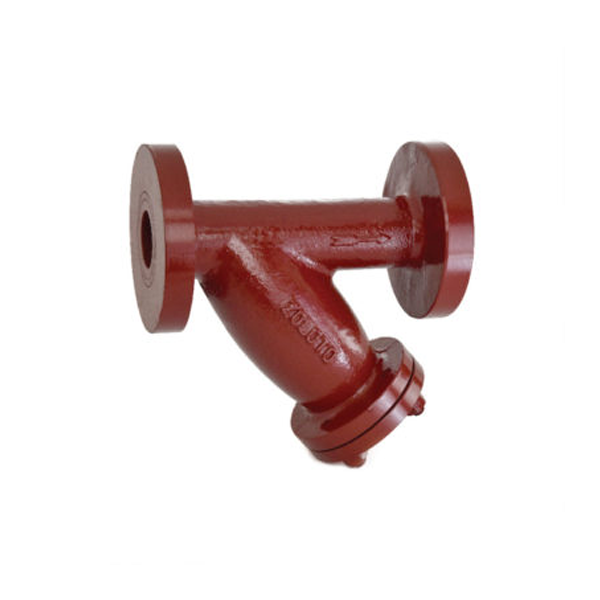

Zoloto - 150 mm Y Type, Cast Steel Flanged Strainer is the product that is used to filter out unwanted particles in a system. This type of strainer is made of cast steel and is 150 mm in diameter. It is typically used in water, gas, and oil systems. The Flanged Strainer can handle fluids that are both cold and hot. It can also handle large volumes of fluids. The 150 mm Y Type Cast Steel Flanged Strainer is a high-quality strainer that can handle high-pressure, high-temperature, and high-volume fluids. Cast Steel Flanged Strainer is used in heating and other thermic fluid applications. The Y Type Strainer is a high-a strainer designed to cope with the most challenging of drainage applications.
Product Specifications:
Brand: Zoloto
Material: Bronze
Type: Flanged
Size: 150 mm
Working pressure: 24.60 kg/cm2g
Test Pressure: 49 kg/cm2g
Temperature: 425°C
Media: Oil, Steam, Water
Key Features:
Flanged Ends = BS 10 Table J
Stainless steel perforated sheet screen, guided inside the body and cover
Large screening area improves the performance of the strainer
Smooth contours lower pressure drop in a strainer
The drain plug is fitted to empty the collected the foreign particles
