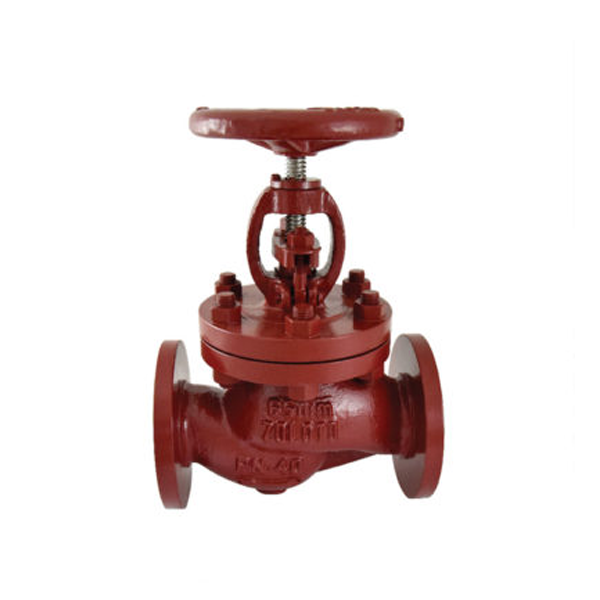

The Zoloto - 65 mm, Cast Steel Flanged Globe Steam Stop Valve is a Flanged Globe Steam Stop Valve of straight pattern with an outside screw. This 65 mm Cast Steel Flanged Globe Steam Stop Valve comes with a rising stem and bolted bonnet. This Globe Steam Stop Valve is used to start, stop or regulate the steam flow. This Cast Steel Globe Steam Stop Valve is a handwheel operated Globe Steam Stop Valve. It comes with a provision for repacking under pressure. This Globe Steam Stop Valve is suitable for thermic fluid application. The main working parts of this valve are made of renewable 13% Cr. Stainless Steel (S.S 410).
Product Specifications:
Brand: Zoloto
Made in: India
Product Code: 1071
Size: 65 mm
End connections: Flanged ends
Operating temperature: 425°C
Test pressure: Shell: 60 bar (870 psig)
Maximum Working Pressure: 40 bar (580 psig)
Key Features:
Flanged Ends to DIN 2545 PN 40
Handwheel operated
Streamlined body design
Ease of operation
Suitable for steam, water, oil
