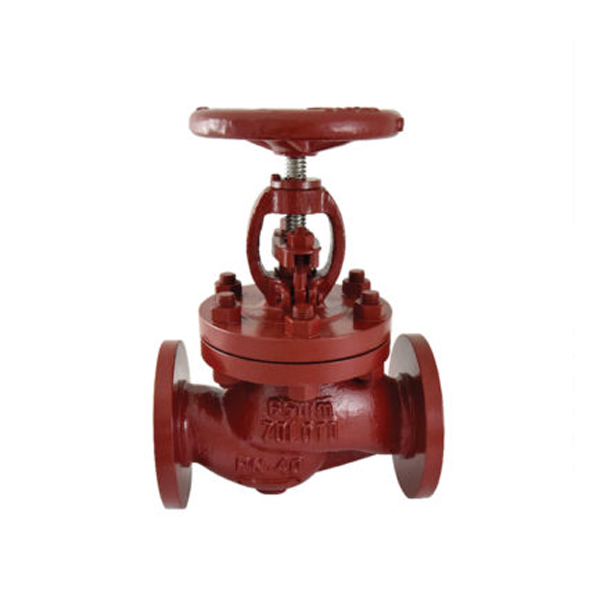

The Zoloto - 25 mm, Cast Steel Flanged Globe Steam Stop Valve consists of flanged ends to DIN 2545 PN 40. The 25 mm, Cast Steel Flanged Globe Steam Stop Valve has a straight pattern and contains an outside screw in it. The type of Cast Steel Flanged Globe Steam Stop Valve is Yoke type. The bonnet present in the Flanged Globe Steam Stop Valve is bolted. The Globe Steam Stop Valve also contains a rising stem in it. This Stop Valve is handwheel operated. The nut and washer contained in the Flanged Globe Steam Stop Valve are carbon steel.
Product Specifications:
Brand: Zoloto
Item code: 1071
Size: 25 mm
End connection: Flanged ends
Temperature: 425
Suitable for: Oil, water, and steam
Hydrostatic test pressure for shell: 870 psig
Hydrostatic test pressure for the seat: 580 psig
Key Features:
Capable of producing higher accuracy
The thermic fluid operation can be done with this
Minimum pressure drop
