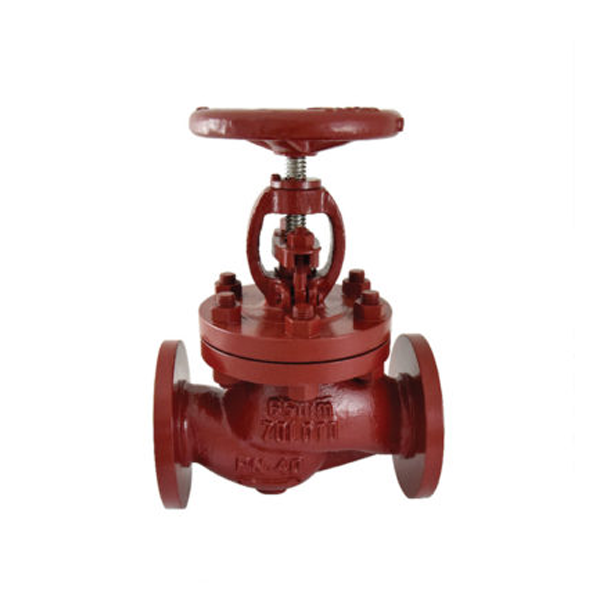

The Zoloto 200 mm, Cast Steel Flanged Globe Steam Stop Valve is a valve generally attached directly to the boiler to shut down the steam from the primary steam line. The Globe Steam Stop Valve is non-reversible and is also known as a stop valve. The Flanged Globe Steam Stop Valve permits the steam flow only in one direction and then automatically ceases the backflow towards the main header. The Stop Valve is very necessary for a steam boiler to regulate and isolate the pressure of the boiler and to keep it in balance.
Product Specifications:
Brand name: Zoloto
Developed in: India
Product: Cast Steel Flanged Globe Steam Stop Valve
Size of the product: 200mm
Material: Carbon Steel
Maximum Working Temperature: 425°C
Model: 1071
Working Pressure: 580 pisg
Key Features
Stainless Steel
Streamlined Body
Operated by hand wheel
Repacking provision under pressure
Straight pattern
Adequate for thermic fluids use
Sturdy body
Easy to use
