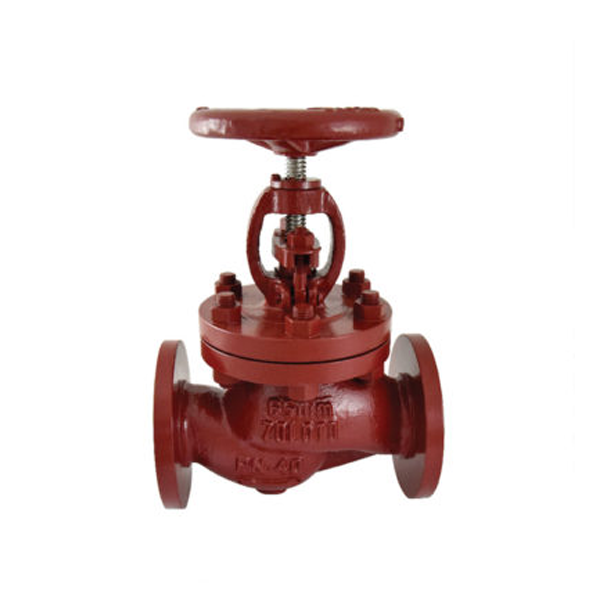

Zoloto - 15 mm, Cast Steel Flanged Globe Steam Stop Valve is a cast steel stop valve with Flanged Ends to DIN 2545 PN 40. This 15 mm, Cast Steel Flanged Globe Steam Stop Valve has an operating pressure of 130 psi, and the maximum temperature rating is 425°C. This Cast Steel Flanged Globe Steam Stop Valve is ideal for use in commercial or industrial applications where high-temperature water needs to be shut off quickly. The threaded pipe connection of Flanged Globe Steam Stop Valve makes it easy to install on pipes with diameters ranging from 1/2” to 2”. This Globe Steam Stop Valve has provision for re-packing under pressure. This Stop Valve is suitable for thermic fluid application also.
Product Specifications:
Brand: Zoloto
Country of Origin: India
Material: cast steel
Product: flanged globe steam stop valve
Size: 15 mm
Type: flanged
Test pressure: Shell: 870 psig, Seat:580 psig
Product code: 1071
Nut: Carbon Steel
Washer: Carbon Steel
Handwheel: Malleable Iron
Stem: Stainless Steel
Yoke Bush: Aluminium Bronze
Locking Screw: Carbon Steel
Gland Flange: Cast Steel
Gland: Stainless Steel
Bonnet: Cast Steel
Key Features:
Straight Pattern, Outside Screw, Yoke Type, Rising Stem & Bolted Bonnet.
Easy to install on pipes
Threaded pipe connection
