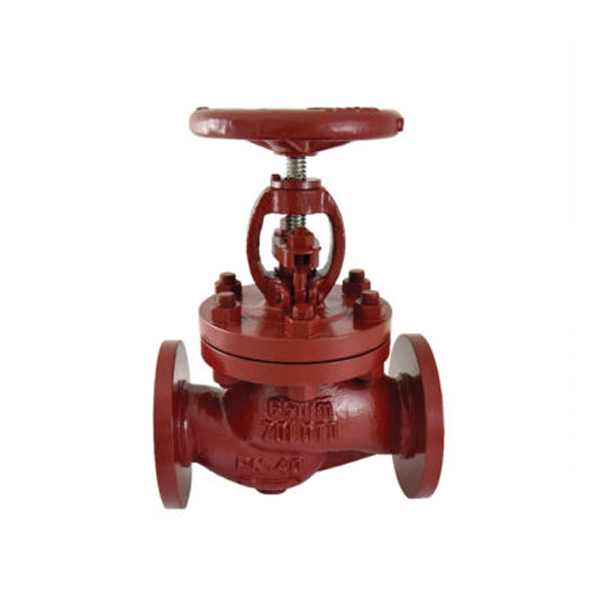

The Zoloto - 100 mm Cast Steel Flanged Globe Steam Stop Valve is a benchmark mechanical device. The 100 mm Cast Steel Flanged Globe Steam Stop Valve is crafted with superior quality raw materials and modern solutions to meet government officials' standards. The refined body design exerts minimum pressure inside the body. In addition, it features a handwheel control and allows for repacking under restraint. This Cast Steel Flanged Globe Steam Stop Valve is also suitable for applying thermic fluids.
Product Specifications:
Brand Name: Zoloto
Maximum Operating Temperature: 425 Degree Celsius
Size (mm): 100
Size (Inch): 4
Material:
Nut: Carbon Steel
Stem: Stainless Steel
Washer: Carbon Steel
Yoke Bush: Aluminium Bronze
Handwheel: Malleable Iron
Bonnet: Cast Steel
Gasket: Spiral Wound S.S. Graphite Filled
Locking Screw: Carbon Steel
Gland: Stainless Steel
Gland Flange: Cast Steel
Gland Packing: Braided Graphite
Test Pressure (Hydrostatic):
Shell: 870 PSIG
Seat: 580 PSIG
Key Features:
DIN 2545 PN 40 Flanged Ends.
Outside Screw, Rising Stem, Yoke Type, Bolted Bonnet, Straight Pattern.
Working parts made of 13 per cent Cr. Stainless Steel (S.S. 410).
