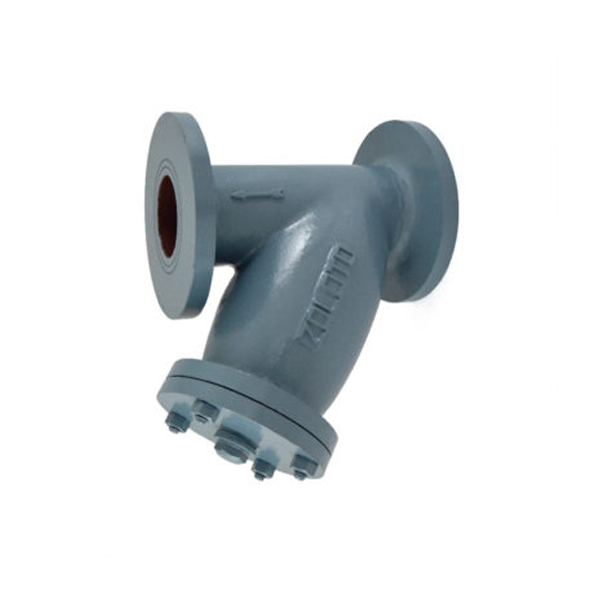

Zoloto - 80 mm Y Type, Cast Iron Flanged Strainer is designed for working under heavy-duty conditions where excessive pressure is applied. Zoloto Cast Iron flanged strainers are the perfect solution where high flow capacity is required. The 80 mm Y Type Flanged type makes it perfect for a pipeline with an 80 mm diameter. The Cast Iron Flanged Strainer can be operated by beginners and professional experts under various working conditions without causing any strain or fatigue. The Cast Iron Flanged Strainer is made with a Y-type head, which will make the Flanged Strainer easier to attach and detach.
Product Specifications:
Brand: Zoloto
Material: Bronze
Type: Flanged
Size: 80 mm
Working pressure: 10.55 kg/cm2g
Shell: 21.10 kg/cm2g
Temperature: 220°C
Media: Steam, Water
Key Features:
Flanged Ends = BS 10 Table F
Fine Finish
Stainless steel perforated sheet screen, guided inside the body and cover.
Large screening area improves the performance of the strainer
Smooth contours lower pressure drop in a strainer
The drain plug is fitted to empty the collected the unfamiliar particles
