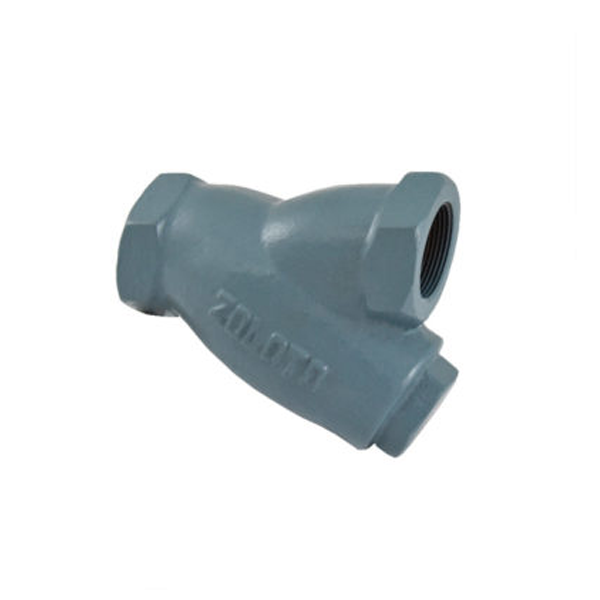

The Zoloto - 50 mm Y Type Cast Iron Screwed Strainer is a durable product. The 50 mm Y Type Cast Iron Screwed Strainer is developed with quality products and advanced concepts. The materials used to make Cast Iron Screwed Strainer are obtained from the most secure contractors, who were asked after extensive market research. The screen is inserted in the body of this Cast Iron Screwed Strainer and bonnet with stainless steel (S.S. 304) perforated sheet screen (1 mm perforation). The strainer has a fine finish and smooth contours to minimise pressure drops inside the strainer.
Product Specifications:
Brand Name: Zoloto
Maximum Operating Temperature: 220 Degree Celsius
Product Type: Screwed
Size (mm): 50 mm
Size (Inch): 2 inch
End Connection: Female Ends
Material:
Body: Cast Iron
Cover: Cast Iron
Screen: Stainless Steel
Gasket: Steam Jointing Sheet
Test Pressure (Hydrostatic):
Shell: 300 psig
Seat: 150 psig
Ideal For: Water, Steam
Product Code: 1069
Key Features:
Female Ends Screwed to BSPT.
The strainer's large screening area contributes to its high performance.
