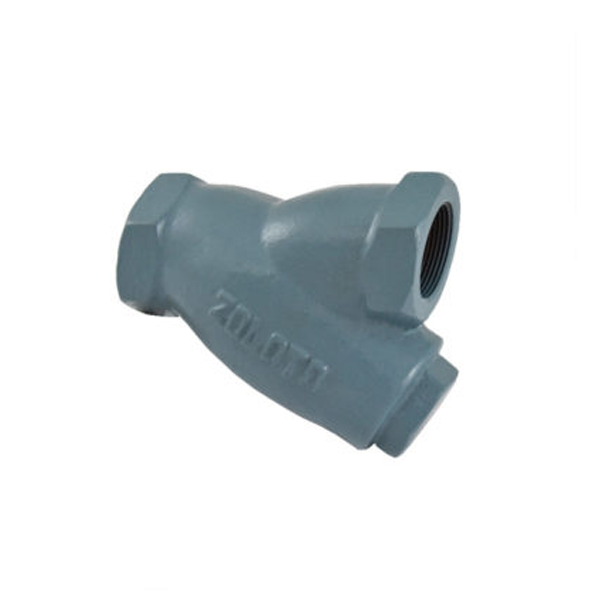

The Zoloto - 15 mm Y Type, Cast Iron Screwed Strainer comes with screwed female ends with BSPT (British Standard pipes). Stainless steel of grade S.S 304, which contains a perforated sheet screen, is present in the 15 mm Y Type, Cast Iron Screwed Strainer and is guided in bonnet and body. The diameter of the perforation is 1 mm. In Y Type, Cast Iron Screwed Strainer, the finishing is fine and has smooth contours. This feature contained in the Cast Iron Screwed Strainer helps in minimising the pressure drop. A bigger screening area present in the Screwed Strainer makes it highly efficient while performing.
Product Specifications:
Brand: Zoloto
Item code: 1069
End connections: Flanged ends
Size: 15 mm
Temperature: 220
Suitable for: Water and steam
Hydrostatic test pressure for shell: 300 psig
Hydrostatic test pressure for the seat: 150 psig
Key Features:
Finishing is fine
Helps minimise pressure drop
High efficiency
