Buy Zoloto 1067 - 150 mm Cast Iron Flanged Horizontal Lift Straight Pattern Check Valve Online

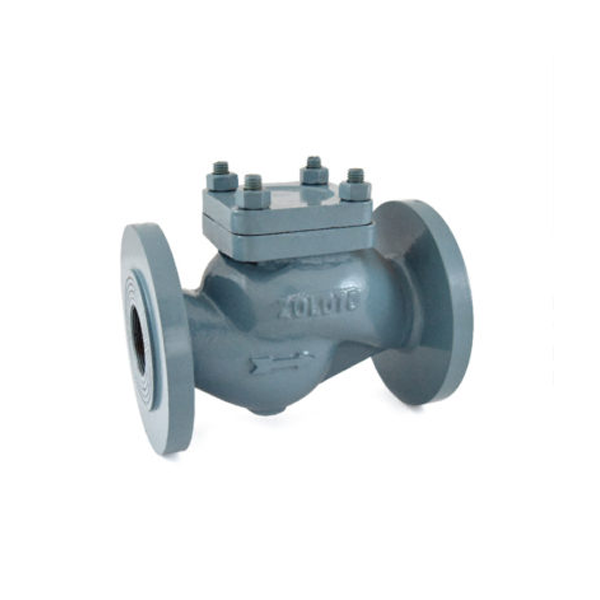

Zoloto 1067 - 150 mm Cast Iron Flanged Horizontal Lift Straight Pattern Check Valve


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Zoloto 1067 - 150 mm Cast Iron Flanged Horizontal Lift Straight Pattern Check Valve

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Zoloto - 150 mm Cast Iron Flanged Horizontal Lift Straight Pattern Check Valve is a Straight Pattern Check Valve with bolted cover. This 150 mm Cast Iron Flanged Horizontal Lift Straight Pattern Check Valve comes with a streamlined body design. This Cast Iron Flanged Horizontal Lift Straight Pattern Check Valve's working parts are made of 13% Cr. Stainless Steel (S.S 410). The Horizontal Lift Straight Pattern Check Valve is mainly used in applications where the reverse flow of the fluid can damage the system. The use of the Straight Pattern Check Valve also helps to maintain the vacuum seal. Check Valves also prevent the contamination of fluids.

Product Specifications:

Brand: Zoloto
Made in: India
Product code: 1067
Size: 150 mm
End connection: Flanged ends
Operating temperature: 220°C
Test pressure: Shell: 26 kg/cm²g (370 psig)
Working Pressure (Steam) : 13 kg/cm²g (185 psig)

Key Features:

Flanged Ends to DIN 2533 PN 16RF.
Streamlined body design
Ease in operation
Suitable for steam, water

Product Specifications

GENERAL

Brand:
Zoloto
Material:
Cast Iron
Model:
1067
Product:
Flanged Horizontal Lift Straight Pattern Check Valve
Size:
150 mm
