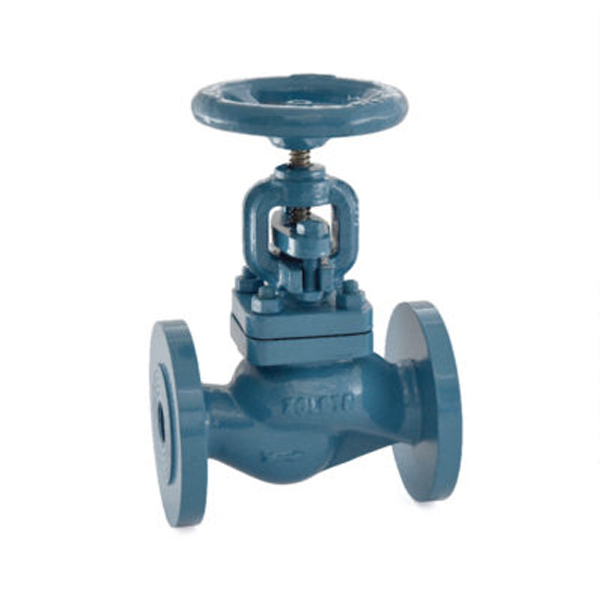

The Zoloto - 20 mm Cast Iron Flanged Globe Steam Straight Pattern Stop Valve consists of flanged ends to DIN 2533 PN 16 RF. The pattern used in the 20 mm Cast Iron Flanged Globe Steam Straight Pattern Stop Valve is straight. The Cast Iron Flanged Globe Steam Straight Pattern Stop Valve is yoke type and has an outside screw. The pressure drop of the Straight Pattern Stop Valve is low inside the body. It is because of the streamlined body design. The lift of the seat is high in the Flanged Globe Steam Straight Pattern Stop Valve to avoid obstruction during the flow. The operation of the Stop Valve is simple and easy.
Product Specifications:
Brand: Zoloto
Item code: 1065
End connection: Flanged ends
Temperature: 220
Size: 20 mm
Suitable for: Steam and water
Hydrostatic test pressure for shell: 370 psig
Hydrostatic test pressure for the seat: 185 psig
Key Features:
Fine finish and smooth grip
Only minimum pressure drop
Sturdy big sized wheel produces the necessary torque for simple operation
