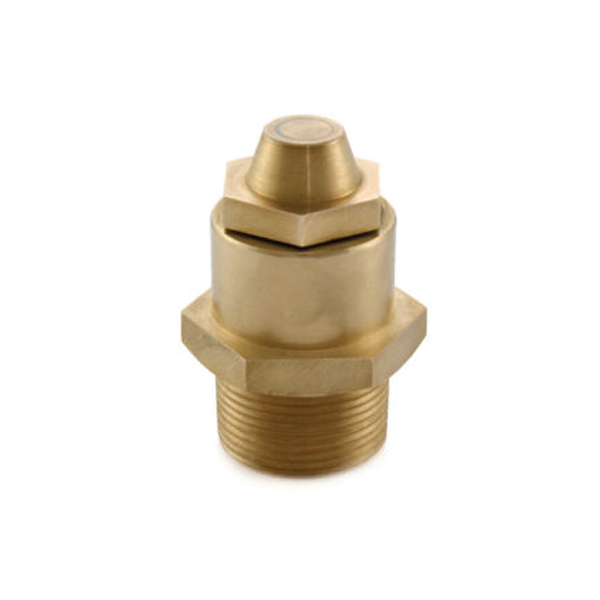

The Zoloto - 20 mm Bronze Two-Piece Design Fusible Plug consists of IBR 282 (a) (iv) Gr. B standard Bronze metal. The 20 mm Bronze Two-Piece Design Fusible Plug is designed as a two-piece device having a screw with a male end to BSPT. The Bronze Two-Piece Design Fusible Plug is, manufactured by Zoloto, made of premium quality Fusible Alloy. This Two-Piece Design Fusible Plug is co mmonly installed within compressed air systems and coal-fired boilers. Furthermore, the Fusible Plug operates as a safety valve when dangerous temperatures are reached in a closed vessel.
Product Specifications:
Brand: Zoloto
Made In: India
Product: Two-Piece Design Fusible Plug
Model Series: 1064
Size: 20 mm
Cone Material: Bronze
Body Material: Bronze
Plug Material: Bronze
Fusible Alloy Material: Pb-Sn-ALLOY
Finish: Bronze Coating
Tool Type: Automatic
Suitable For: Steam
Shell Pressure: 500 PSIG
Working Steam Pressure: 250 PSIG
Maximum Working Temperature: 225°C
Key Features:
Premium quantity
Easy to use
Everlasting
Hydrostatic tested
Strong and tempered body
Corrosion-resistant
