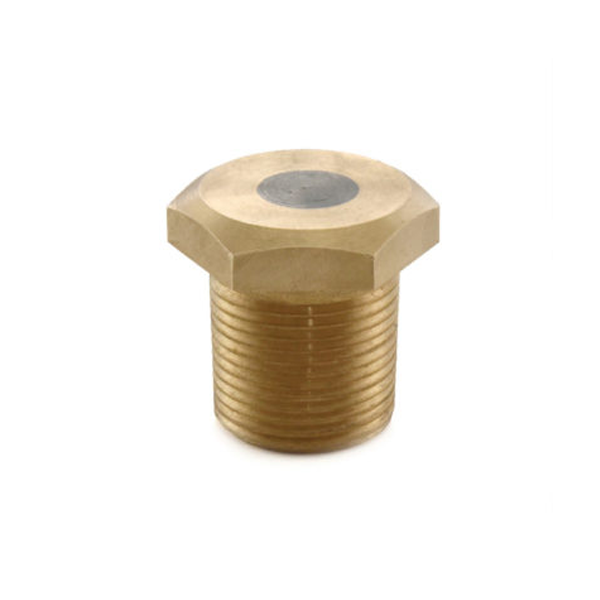

Fusible plugs are employed on compressed air and steam systems as warning devices. Zoloto - 20 mm Bronze One-Piece Design Fusible Plugs are premium quality Bronze One Piece Fusible Plugs manufactured using fusible alloy. The 20 mm Bronze One Piece Fusible Plug body is good quality bronze. Fusible Plugs are used to protect machinery from over temperature. They are usually installed in boilers to reduce the risk of an explosion that may happen because of low water levels. They play an important role in avoiding some hazardous incidents and also avoiding failures that could occur.
Product Specifications:
Brand: Zoloto
Made: India
Product code: 1063
Size: 20 mm
Body Material: Bronze
End connection: Male ends
Test pressure: Shell: 35.15 kg/cm²g (500 psig)
Working Pressure (Steam) : 17.58 kg/cm²g (250 psig)
Operating temperature: 225°C
Key Features:
Screwed male end to BSPT
One-piece design
Premium quality fusible alloy
Suitable for steam
