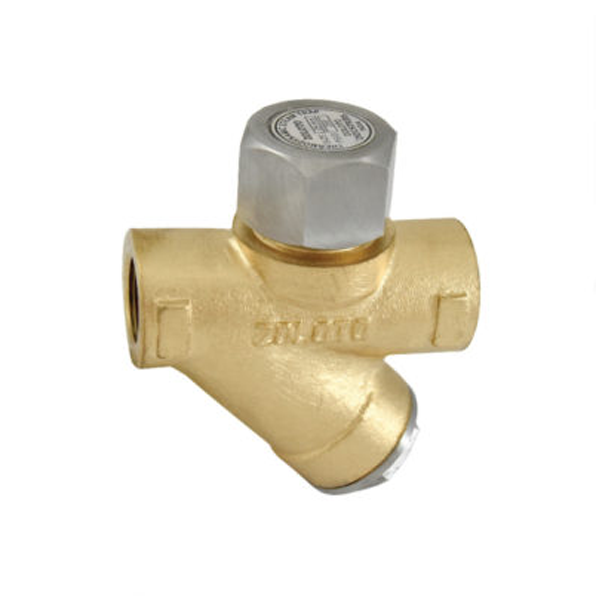

The Zoloto - 20 mm Bronze Screwed Thermodynamic Steam Trap contains screwed female ends with BSPT (British Standard pipes). The 20 mm Bronze Screwed Thermodynamic Steam Trap comes with an integral strainer to provide trouble-free service. The Bronze Screwed Thermodynamic Steam Trap consists of stainless steel, type 304. This stainless steel in the Screwed Thermodynamic Steam Trap is provided with a 0.5 mm diameter perforated sheet screen. The Thermodynamic Steam Trap is renewable and comprises 13 % chromium. The disc, cover, and screen of this Steam Trap are stainless steel, and the body is bronze.
Product Specifications:
Brand: Zoloto
Item code: 1055
Type: Screwed
End connection: Female ends
Temperature: 225
Size: 20 mm
Suitable for: Steam
Hydrostatic test pressure for shell: 500 psig
Hydrostatic test pressure for the seat: 250 psig
Key Features:
Fine finish and smooth grip
Produces higher efficiency
Able to withstand higher temperature
