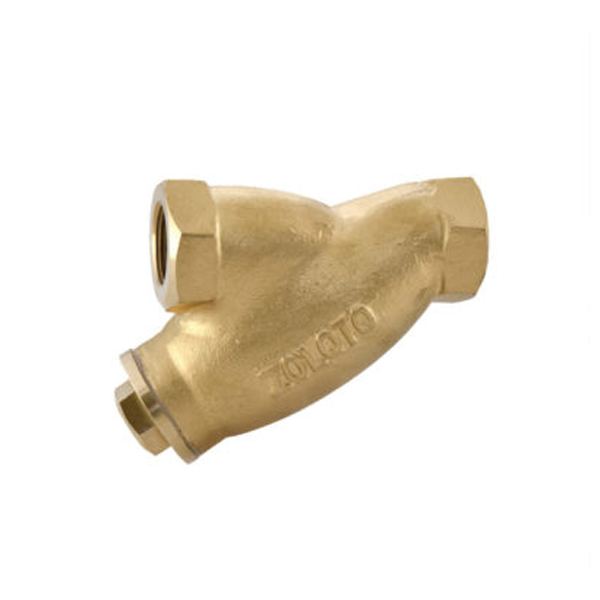

This product is specially designed to treat large quantities of wastewater. Zoloto- 25 mm Y Type Bronze Screwed Strainer is certified by the American Petroleum Institute and Indian Boiler Regulations. The Y Type Bronze Screwed Strainer is most suitable for steam and water. It was designed with female screw ends and a stainless steel Ø1 mm perforated sheet screen. The 25 mm Y Type allows water to pass through the screen while preventing solids from passing through. In addition, the fine finish on the Bronze Screwed Strainer and its smooth contours reduce the pressure drop in the strainer. The Y-Type consists of four major parts. These are the body, screen, gasket, and cover. The screen is made of stainless steel.
Product Specifications:
Brand: ZOLOTO
Model: 1053
Made in: India
Size: 25 mm
Size: 1.5 inch
Material: Bronze
Key Features:
Test Pressure for Shell is 35.15 kg/cm²g (500 psig)
Working Pressure for Steam is 17.58 kg/cm²g (250 psig)
The maximum temperature of the strainer is 225°C
