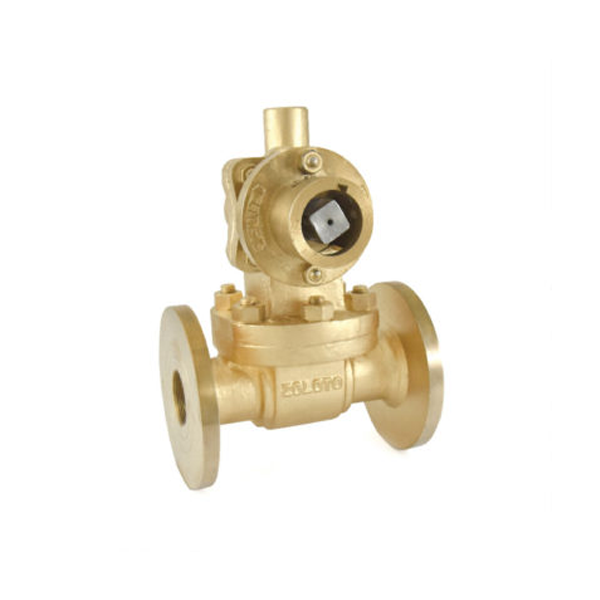

Zoloto - 32 mm Bronze Flanged Parallel Slide Blow Off Valve maintains safety during operations due to its sliding disks. This 32 mm Bronze Flanged Parallel Slide Blow Off Valve operated using a rack and pinion arrangement. This Bronze Flanged Parallel Slide Blow Off Valve has a working pressure of 250 PSIG and a maximum working temperature of 225 degrees C. This Flanged Parallel Slide Blow Off Valve has studs designed using alloy steel. This Parallel Slide Blow Off Valve has model number 1052. This Blow Off Valve is suitable for water and steam.
Product Specifications:
Brand: Zoloto
Country of Origin: India
Model Number: 1052
Bonnet: Bolted
Shell Pressure: 500 PSIG
Working Pressure Steam: 250 PSIG
Spring Material: Stainless Steel
A ±1.5: 178
B ~: 157
Product Type: Bronze flanged horizontal Check Valve
Suitable for: Water and Steam
End Connection: BS 10 Table H.
Test Pressure: Hydrostatic
Maximum Temperature: 225 degrees C
Size: 32 mm
Size: 11/4 inches
Colour: Golden
Material: Bronze
Key Features:
This valve abides by the industry parameters.
Safe to use
