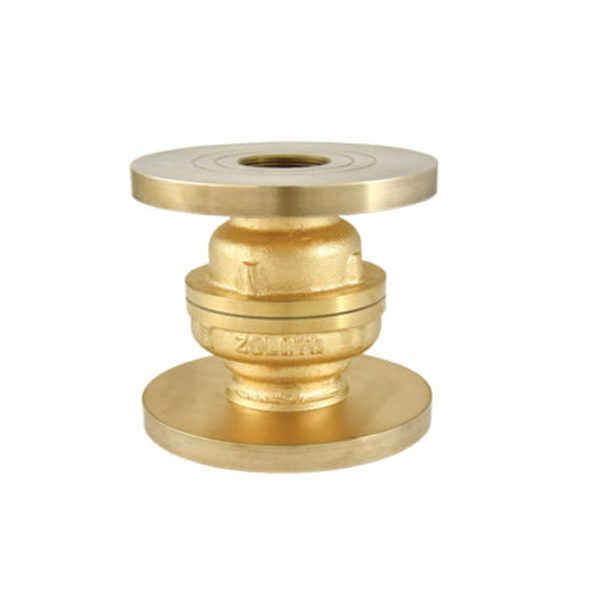

The Zoloto - 15 mm Bronze Flanged Vertical Lift Check Valve comes with flanged ends with BS 10 (British Standards) Table H. The 15 mm Bronze Flanged Vertical Lift Check Valve is a two-piece design. The Bronze Flanged Vertical Lift Check Valve acts as a working part and consists of stainless steel (S.S 410) of renewable chromium of 13 %. The construction of the Flanged Vertical Lift Check Valve includes an outlet body and an inlet body made of bronze. The Vertical Lift Check Valve also contains a disc made of stainless steel. The body seat ring of the Check Valve is made of stainless steel as well.
Product Specifications:
Brand: Zoloto
Size: 15 mm
Temperature: 225
End connection: Flanged ends
Suitable for: Steam and water
Hydrostatic test pressure for shell: 500 psig
Hydrostatic test pressure for the seat: 250 psig
Outlet body material: Bronze
Inlet body material: Bronze
Body seat ring: Stainless steel
Key Features:
Used in high rise buildings
No external moving parts
They are economical and reliable
