Buy Zoloto 1038 - 50 mm Bronze Screwed Horizontal Check Valve Online
Zoloto

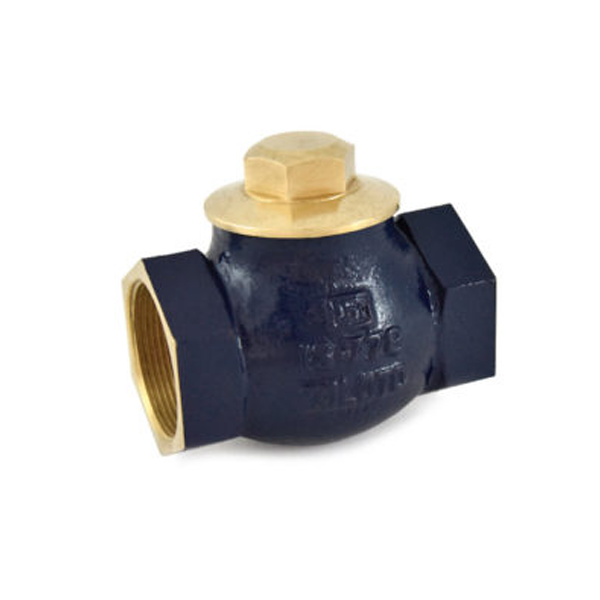

Zoloto 1038 - 50 mm Bronze Screwed Horizontal Check Valve


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Zoloto

Zoloto 1038 - 50 mm Bronze Screwed Horizontal Check Valve

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Zoloto - 50 mm Bronze Screwed Horizontal Check Valve consists of female ends with standards IS 554 / BS 21 / ISO 7. The 50 mm Bronze Screwed Horizontal Check Valve also has a screw in the bonnet, which is meant for performing horizontal lines. This Bronze Screwed Horizontal Check Valve can allow flow in one direction and could shut it automatically if it is reversed. The metal disc present in the Horizontal Check Valve is mushroom-shaped. It also possesses a spherical seating surface. In this Check Valve, the disc is assisted in the body and the bonnet. The design standard for this Check Valve is mentioned below: IS 778, Class - 1.
Product Specifications:
Brand: Zoloto
Size: 50 mm (2 inches)
Type: Screwed
End Connection: Female ends
Body: Bronze
Bonnet: Forged brass / Bronze
Operating temperature: 45.
Suitable for: Both oil and water
Hydrostatic test pressure for shell: 1.5 MPa
Hydrostatic test pressure for a seat: 0.25 MPa
Key Features:
Flow happens only in a single direction, and if it flew reverse, it automatically shuts
Maintains pressure
Serves as a backup system

Product Specifications

GENERAL

Brand:
Zoloto
Material:
Bronze
Model:
1038
Product:
Screwed Horizontal Check Valve
Size:
50 mm
