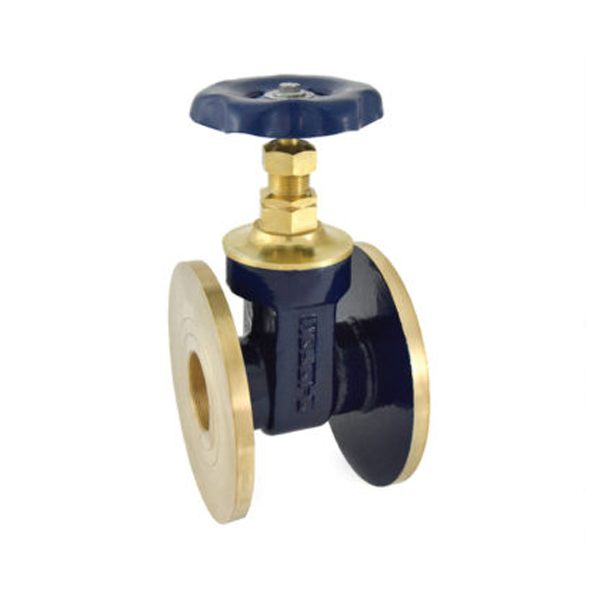

The Bronze Flanged Gate Valve has a flanged end with a screw-in bonnet, integral seat and stem, and a solid wedge. The premium quality PTFE gland packing allows for repacking under pressure. The 25 mm Bronze Flanged Gate Valve features the finest quality, durability, and excellent performance. The Zoloto-25 mm Bronze Flanged Gate Valve is a gathered structure, and each of its components is made up of different materials. The screws and bolts of the Gate Valve are made up of carbon steel, and the stem, bonnet, and gland nut consist of forged brass. The handwheel is made up of sheet metal with power-coated paint on it. The gland packing is made up of PTFE, and finally, Bronze is used to make the body and wedge. This product has flanged ends to IS 778.
Product Specifications:
Brand: ZOLOTO
Model: 1036
Made in: India
Weight: 1.3 kg
Size: 50 mm
Material: Bronze
Test Pressure: 1.5 MPa
Key Features:
Resilient metal sheet
The maximum working temperature of the valve is 225°C
Suitable for water and oil
