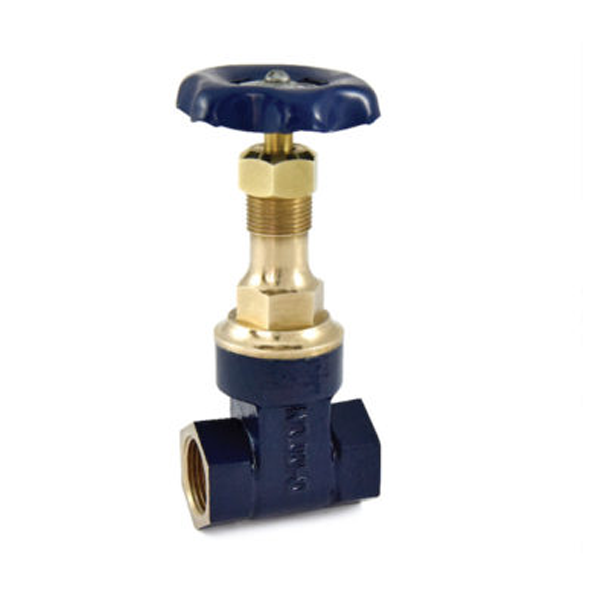

Zoloto - 50 mm Bronze Screwed Gate Valve with Rising Stem has a solid bronze body and can be easily used with liquids and slurries. This 50 mm Bronze Screwed Gate Valve with Rising Stem is easy to disassemble and has low maintenance costs. In addition, this Bronze Screwed Gate Valve with a Rising Stem can minimise the pressure across the valve and stop the liquid from flowing. Therefore, this Screwed Gate Valve with Rising Stem is highly suitable for on-off services. The shell pressure of this Gate Valve with a Rising Stem is 1.5 Mpa. In addition, the company designs this Gate Valve in India.
Product Specifications:
Brand: Zoloto
Country of Origin: India
Model Number: 1035B
Handwheel: Sheet Metal
Shell Pressure: 1.5 Mpa
Screw Bolt Material: Carbon steel
A ±1.5: 100
B ~: 243
ØC ~: 110
D: 2″
Product Type: Screwed Gate Valve with rising stem
Suitable for: Water and Oil
End Connection: IS 554 / BS21 / ISO – 7.
Body Pressure: 1.5 Mpa
Packing: PTFE Gland Packing.
Test Pressure: Hydrostatic class 1
Seat and Back Seat: 1.0 Mpa
Maximum Temperature: 45 degrees C
Size: 50 mm
Size: 2 inches
Colour: Blue and Golden
Material: Bronze
Key Features:
Can be screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat, Solid Wedge.
Can handle pressures easily.
