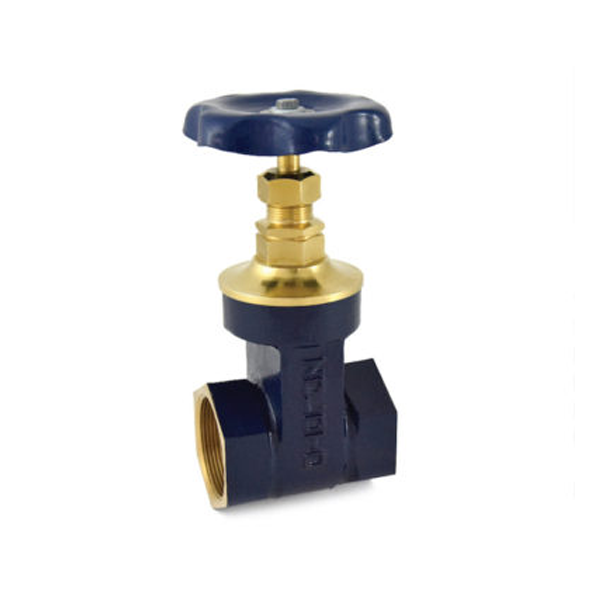

The Zoloto - 50 mm Bronze Screwed Gate Valve is a high-pressure resistant tool that can withstand high pressures of liquids, gases and steam. It allows the flow in only one direction. The 50 mm Bronze Screwed Gate Valve is generally positioned manually; however, it can be positioned using mechanical methods. The materials used to fabricate Bronze Screwed Gate Valve are obtained from the most reliable vendors. The Zoloto Screwed Gate Valve is manufactured using premium materials, i.e. gland packing of PTFE, aluminium for nameplate, forged brass for gland nuts and stem. Gate Valve is a linear motion valve mainly developed to stop, start and control flow in various construction and mechanical industries.
Product Specifications:
Brand: Zoloto
Material: Bronze
Type: Screwed
Size: 50 mm
Seat: 1.0MPa
Shell: 1.5MPa
Temperature: 45°C
Item No.: 1035
Media: Water, Oil
Key Features:
Screwed Female Ends to IS 554 / BS 21 / ISO 7.
Supreme Quality PTFE Gland packing
Screwed in Bonnet, Inside Screw, Solid wedge
Design standard IS 778, Class-1
Repacking under pressure
Metal Handwheel for firm grip and convenient operation
Screwed in Non-Rising Stem, Integral Seat
