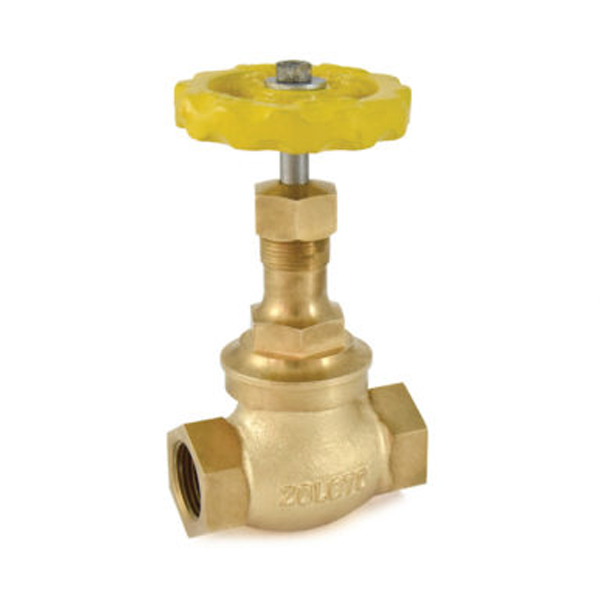

Zoloto - 20 mm Bronze Screwed Union Bonnet Globe Valve is a premium-quality valve having a handwheel operation. It is an ideal product for usage in the industry. This 20 mm Bronze Screwed Union Bonnet Globe Valve features a screwed bonnet and a rising stem. It has a provision for re-packing under pressure. The screwed female ends of this Bronze Screwed Union Bonnet Globe Valve meet the IS 554 / BS 21 / ISO 7 standards. Notably, this Screwed Union Bonnet Globe Valve comes with replaceable working parts. It has a shell test pressure of 35 kg/cm²g and a working pressure of 10.55 kg/cm²g. This Globe Valve with union bonnet is apt for applications requiring frequent cleaning or maintenance. It is very helpful for controlling the water flow & pressure and shutting off the flow. This is a durable and high strength product.
Product Specifications:
Brand: Zoloto
Country of Origin: India
Product: Screwed Union Bonnet Globe Valve
Model: 1031
Material: Bronze & Stainless Steel
Size: 20 mm (3/4 inch)
Shell Test Pressure (Hydrostatic): 35 kg/cm²g (500 psig)
Working Pressure (Steam): 10.55 kg/cm²g (150 psig)
Maximum Working Temperature: 225°C
Operation: Manual
Key Features:
Replaceable Working Parts
Durable & High-Strength
