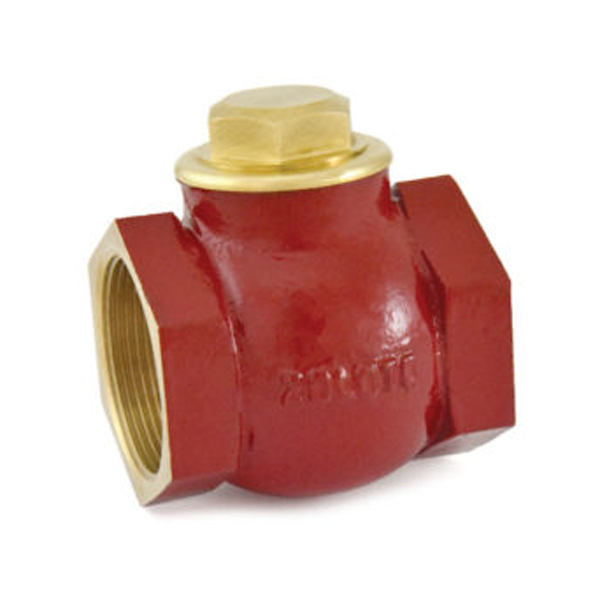

The Zoloto - 65 mm Bronze Screwed Horizontal Check Valve has a hardened bronze body. Due to its sturdy construction, the 65 mm Bronze Screwed Horizontal Check Valve is unaffected by abrasions. The Bronze Screwed Horizontal Check Valve allows fluid flow only in one direction. Moreover, the Screwed Horizontal Check Valve is resistant to corrosion. The Check Valve has a mushroom-shaped metal disc with a spherical seating surface. This Horizontal Check Valve has a maximum working temperature of 80°C.
Product Specifications:
Manufactured By: Zoloto
Country of Origin: India
Series: 1010
Product Name: Bronze Screwed Horizontal Check Valve
Material: Bronze
Product Type: Valve
Suitable For: Water, Oil
Tool Size: 65 mm
End Connection: Screwed End
Standards: Test Pressure (Hydrostatic): Shell: 20 kg/cm²g (285 psig)
Seat: 13.5 kg/cm²g (192 psig)
Maximum Working Temperature: 80°C
Key Features:
It is easy to maintain
It has a compact structure
It finds use with horizontal lines only
It complies with the industry set standards.
