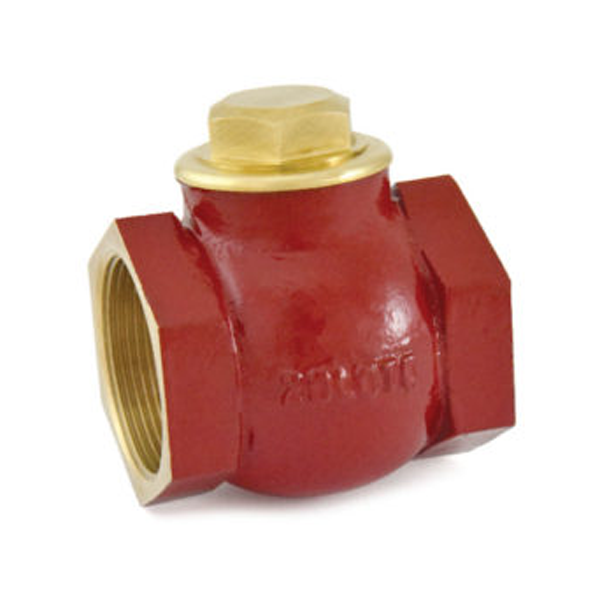

The Zoloto - 32 mm Bronze Screwed Horizontal Check Valve permits flow in one direction and closes automatically if the flow reverses. The 32 mm Bronze Screwed Horizontal Check Valve has a maximum working temperature of 80°C. The Bronze Screwed Horizontal Check Valve has screwed female ends to IS 554 / BS 21 / ISO 7. The Screwed Horizontal Check Valve has a mushroom-shaped Metal Disc. In addition, this Bronze Screwed Horizontal Check Valve has a Bronze bonnet.
Product Specifications:
Manufactured By: Zoloto
Country of Origin: India
Series: 1010
Product Name: Bronze Screwed Horizontal Check Valve
Material: Bronze
Product Type: Valve
Suitable For: Water, Oil
Tool Size: 32 mm
End Connection: Screwed End
Standards: Test Pressure (Hydrostatic): Shell: 20 kg/cm²g (285 psig)
Seat: 13.5 kg/cm²g (192 psig)
Maximum Working Temperature: 80°C
Key Features:
It is easy to maintain
It has a compact structure
It finds use with horizontal lines only
It complies with the industry set standards.
