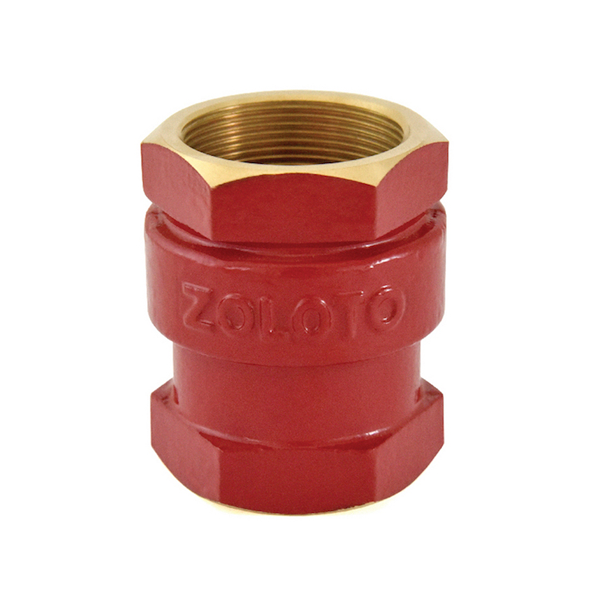

The Zoloto - 20 mm Bronze Screwed Vertical Check Valve has a single-piece design. A Vertical check valve in a system aims to prevent backflow, which could damage equipment or contaminate media upstream. In addition, the Bronze Screwed Vertical Check Valve controls the flow of liquids, thereby protecting pumps and compressors from serious damage. The Bronze Screwed Vertical Check Valve can withstand temperatures and work in temperatures upto 80°C. The Check Valve has Spring Loaded and 'O' Ring Type. Moreover, the Screwed Vertical Check Valve requires minimal maintenance and lasts long.
Product Specifications:
Manufactured By: Zoloto
Country of Origin: India
Series: 1009
Product: Bronze Screwed Vertical Check Valve
Tool Size: 20 mm
End Connection: Screwed End
Test Pressure (Hydrostatic): Shell: 25 kg/cm²g (350 psig)
Seat: 16 kg/cm²g (225 psig)
Maximum Working Temperature: 80°C
Suitable for: Water and Oil
Key Features:
The Vertical Check Valve easy to maintain
It has a compact structure
The Vertical Check Valve has a single-piece design
