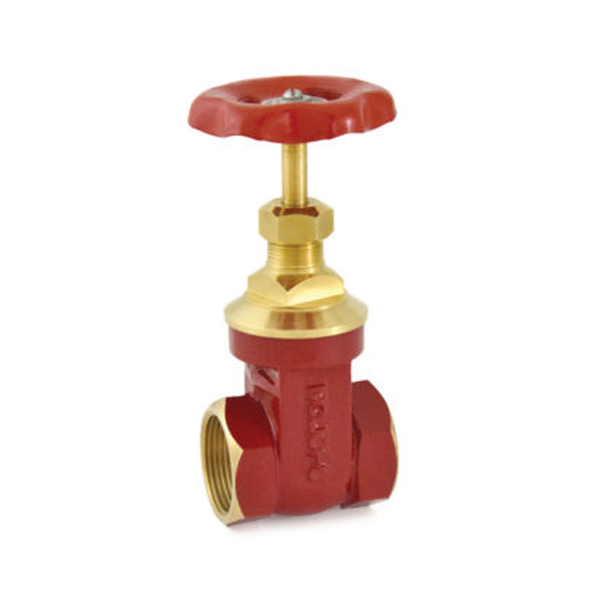

The Zoloto - 40 mm Pegler Type, Bronze Screwed Gate Valve adheres to design Standard BSEN 12288 (BS 5154). Bronze Screwed Gate Valve is a linear motion valve used to start or stop fluid flow. The 40 mm Pegler Type, Bronze Screwed Gate Valve bears screws in Bonnet, Inside Screw, Non-Rising Stem, Integral Seat. In addition, the 40 mm Pegler Type Bronze Screwed Gate Valve has a packing composed of polytetrafluoroethylene (PTFE), well-known for its superior chemical resistance and low friction. This Bronze Screwed Gate Valve is also resistant to high temperatures. Furthermore, the Bronze Screwed Gate Valve is highly durable.
Product Specifications:
Manufactured By: Zoloto
Series: 1007
Type: Pegler
Product: Bronze Screwed Gate Valve
End Connection: Screwed End
Size: 40 mm
Test Pressure (Hydrostatic): Shell: 25 kg/cm²g (350 psig)
Seat: 16 kg/cm²g (225 psig)
Maximum Working Temperature: 225°C
Key Features:
It is easy to use
It has a compact structure
It is durable
