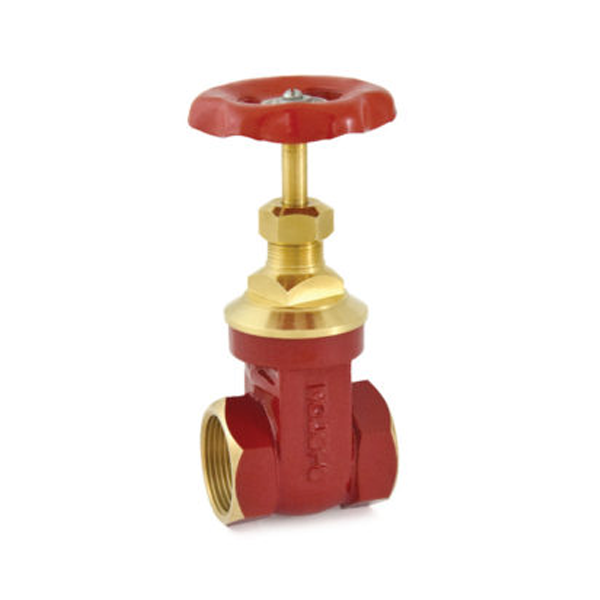

The Zoloto - 32 mm Pegler Type, Bronze Screwed Gate Valve has a metal handwheel for a firm grip and convenient operation. In addition, the 32 mm Pegler Type, Bronze Screwed Gate Valve has a premium quality PTFE Gland Packing. The Pegler Type Bronze Screwed Gate Valve has a powder-coated handwheel. Moreover, the screw/bolt and washer in the Bronze Screwed Gate Valve have Carbon Steel as their construction material, and it has zinc plating. Therefore, the Bronze Screwed Gate Valve is appropriate for use with water and oil. Furthermore, the Bronze Screwed Gate Valve offers a stable performance.
Product Specifications:
Manufactured By: Zoloto
Series: 1007
Type: Pegler
Product: Bronze Screwed Gate Valve
End Connection: Screwed End
Size: 32 mm
Test Pressure (Hydrostatic): Shell: 25 kg/cm²g (350 psig)
Seat: 16 kg/cm²g (225 psig)
Maximum Working Temperature: 225°C
Key Features:
It is easy to use
It has a compact structure
It is durable
