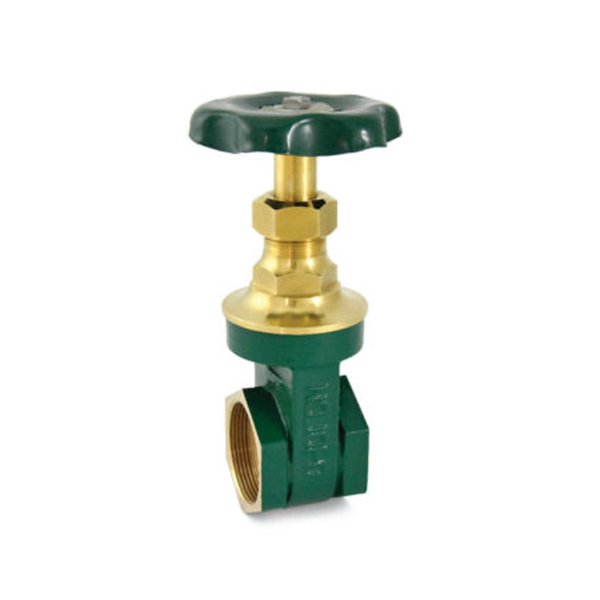

The Zoloto - 25 mm Hexagonal Type, Bronze Screwed Gate Valve has forged Brass Bonnet, Wedge, Stem, and Gland Nut. Since 25 mm Hexagonal Type, Bronze Screwed Gate Valve has a compact structure; it is convenient for fitting where space constraint is the factor. In addition, the Hexagonal Type Bronze Screwed Gate Valve has an exterior bronze finishing. Therefore, the Hexagonal Type Bronze Screwed Gate Valve is suitable for water and oil. The maximum working temperature of the Bronze Screwed Gate Valve is 225°C.
Product Specifications:
Manufactured By: Zoloto
Series: 1006
Type: Screwed
Product: Bronze Screwed Gate Valve
End Connection: Screwed End
Size: 25 mm
Exterior Finishing: Bronze
Test Pressure (Hydrostatic): Shell: 24 kg/cm²g (340 psig)
Seat: 16 kg/cm²g (225 psig)
Maximum Working Temperature: 225°C
Key Features:
It is easy to use
It has a compact structure
It is suitable for oil, water
