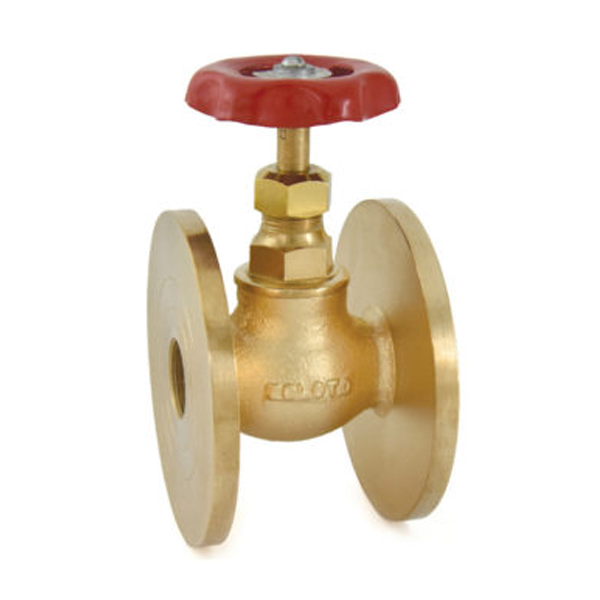

The Zoloto - 50 mm Number 8 Bronze Flanged Globe Valve are bronze tools that control and regulate flow or pressure in the pipeline. The 50 mm Number 8 Bronze Flanged Globe Valve are suitable for manual and automatic operations. The Bronze Flanged Globe Valve drives the liquid or gas in the pipe in a simple linear motion. The Flanged Globe Valve are for isolation and throttling operations. In this Globe Valve, the valve flap moves across the centerline of the valve seat.
Product Specifications:
Brand Name: Zoloto
Model Series: 1003
Model Number: 1003-50
Product Type: Flanged Globe Valve
End Connection: Flanged
Material Type: Bronze
Size (mm): 50 mm
Certification: I.B.R
Marked: I.S.I.
Standard: IS 778
Design Class: Class 1
Grade: 602-0055
Size (inch): 2 Inch
Suitable for: Water, Oil, Air, Gases
Test Pressure (Hydrostatic) for Shell: 24 kg/cm°g
Test Pressure (Hydrostatic) for Seat: 16 kg/cm°g
Maximum Working Temperature: 225°C
Key Features:
Flanged Ends to BS 10 Table ‘D’
It screws in the bonnet
It consists of a rising stem and integral seat
The valve comes with high-quality PTFE seating and gland packing
It comes with an unbreakable sheet metal hand wheel for convenient operation.
Good shutoff capability
Good throttling capability
Shorter stroke
Medium Pattern.
