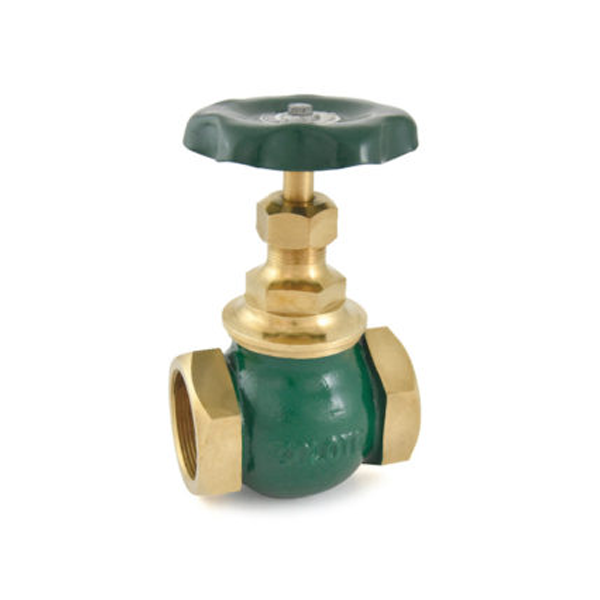

The Zoloto - 20 mm Number 5 Bronze Screwed Globe Valve comes with a spherical body suitable for plant piping operations. The 20 mm Number 5 Bronze Screwed Globe Valve can regulate and stop the flow or pressure in the piping system. These Bronze Screwed Globe Valve consists of a screw that controls the entry of the liquid or gas in the pipes. The Screwed Globe Valve can work with both manual and automatic operations. In addition, Globe Valves are suitable for isolation and throttling services.
Product Specifications:
Brand Name: Zoloto
Model Series: 1002
Model Number: 1002-20
Product Type: Screwed Globe Valve
End Connection: Screwed
Material Type: Bronze
Size (mm): 20 mm
Certification: I.B.R
Marked: I.S.I.
Standard: IS 778
Design Class: Class 1
Grade: 602-0055
Size (inch): 3/4 Inch
Suitable for: Water, Oil, Air, Gases
Test Pressure (Hydrostatic) for Shell: 35 kg/cm°g
Test Pressure (Hydrostatic) for Seat: 20 kg/cm°g
Maximum Working Temperature: 225°C
Key Features:
Screwed Female Ends to IS 554 / BS 21 / ISO 7.
It screws in the bonnet
The tool comes with high-quality PTFE gland packing
It comes with an unbreakable sheet metal hand wheel for convenient operation.
Good shutoff capability
Good throttling capability
Shorter stroke
Heavy Pattern.
Provision for re-packing under pressure.
