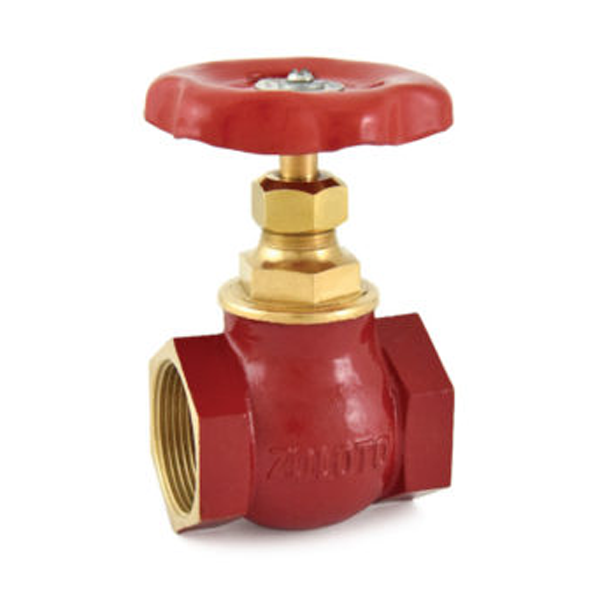

The Zoloto 65 mm Bronze Screwed Globe Valve is a bronze valve that regulates the flow and pressure in the piping system. These 65 mm Bronze Screwed Globe Valve exerts a shearing force on the liquid while rotating. The Bronze Screwed Globe Valve consists of a globe disc to control the flow of the fluid. In addition, the Screwed Globe Valve has a screw to stop the fluid flow. The Globe Valve can operate both manually and automatically. The globe valve has an internal baffle with a spherical shape body.
Product Specifications:
Brand Name: Zoloto
Model Series: 1001
Model Number: 1001-65
Product Type: Globe Valve
End Connection: Screwed
Material Type: Bronze
Size (mm): 65 mm
Certification: I.B.R
Marked: I.S.I
Standard: IS 778
Design Class: Class 1
Grade: 602-0055
Size (inch): 2 (1/2) inch
Suitable for: Water, oil
Test Pressure (Hydrostatic) for Shell: 20 kg/cm°g
Test Pressure (Hydrostatic) for Seat: 13.50 kg/cm°g
Maximum Working Temperature: 225°C
Key Features:
Screwed Female Ends to IS 554 / BS 21 / ISO 7.
It screws in the bonnet
It consists of a rising stem
It has an integral seat
There is a provision for re-packing under pressure
The tool comes with high-quality PTFE gland packing
It comes with an unbreakable sheet metal hand wheel for convenient operation.
Good shutoff capability
Good throttling capability
Shorter stroke
