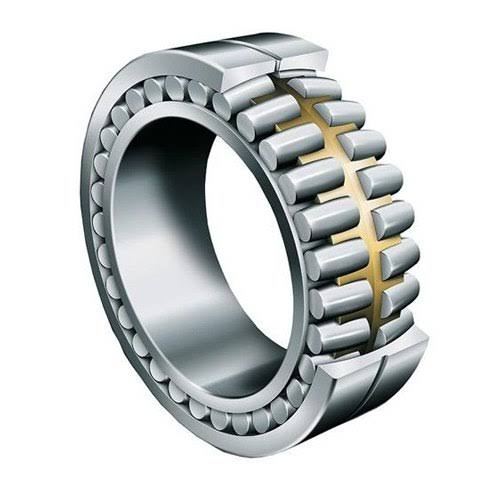

The ZKL - Spherical Roller Bearing uses two rows of rollers located between an outer ring and an inner ring. The most distinguishable factor of these Spherical Roller Bearings is their design and raceway geometry. The design of these Roller Bearings makes them a bearing of exceptional radial capacity. It can also handle axial load, shocks and misalignment. These bearings, however, cannot be disassembled. Spherical Roller Bearings are mostly employed in applications where shaft deflection is expected. The capability of these bearings to self align has made them a popular choice across various industries. Their ability to handle heavy axial and radial loads makes their application area wider. They can also handle shocks and are thus used with vibrating machinery.
Product Specifications:
Brand: ZKL
Product code: 23040EKW33MH
Bore diameter: 190 mm
Outside diameter: 290 mm
Width: 75 mm
Basic load rating(Dynamic): 962
Basic load rating(static): 1510
Limiting the speed of lubrication with grease: 1300
Limiting the speed of lubrication with oil: 1700
Key Features:
The design and raceway geometries id the most distinguishable feature of these bearings
It can handle axial and radial loads simultaneously
