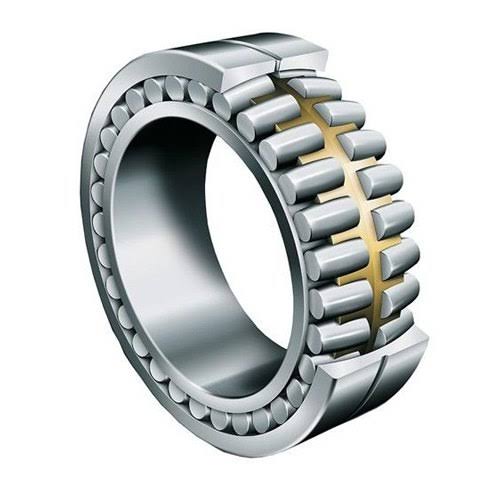

The ZKL - Spherical Roller Bearing allows the desired motion with low friction and angular misalignment. The Spherical Roller Bearing has outer and inner rings separated by a lubricant. These Roller Bearings can work under vibrations and shocks. The spherical bearings are suitable for mining, offshore drilling, casting machines, marine propulsion, gearboxes, off-road vehicles, mechanical blowers, paper & pulp processing, fans, and material handling. They can be of different materials like sheet steel, polyamide, brass, and steel. The inner rings have two raceways that are at an inclination to the bearing axis. Therefore, they can take up impact loading and transfer forces from the machine components.
Product Specifications:
Brand Name: ZKL
Product Type: Bearing
Product Name: Spherical Roller Bearings
Model Number: 23026W33M
Inside Diameter (mm): 130 mm
Outside Diameter (mm): 200 mm
Width (mm): 52 mm
Material Type: Chrome-steel
Key Features:
The inner and outer rings have lubrication
It consists of a cage
It has a high load-bearing capacity
It has industrial applications
The rollers are of spherical shape
It can tolerate misalignment
It allows rotation with less friction
It is suitable for offshore drilling
Durable
It consists of spherical rollers
