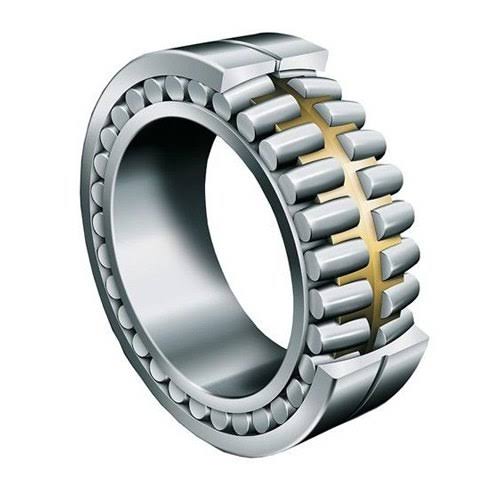

ZKL-spherical roller bearings are utilised in all main shaft and auxiliary drive shaft applications to handle the pure radial load. It allows axial shaft elongation due to temperature changes without adding extra load to the bearing. They are often situated at the ends of the turbine and compressor shafts and are generally separated from them by a squeeze film damper, which is a layer of compressed oil. In many circumstances, the ‘inner race’ is an integrated part of the shaft or stub shaft rather than a distinct component for Spherical Roller Bearings. This decreases complexity, weight, and the accumulation of concentricity tolerances of Roller Bearings.
Product Specification:
Brand: ZKL
Country of origin: India
Product: Spherical Roller Bearing
Material: Chrome Steel
Inside diameter: 190 mm
Outside diameter: 400 mm
Width: 132 mm
Model: 22338EKW33MH NF
Tool Type: Automatic
Key points:
Self-aligning
Can take heavy loads
