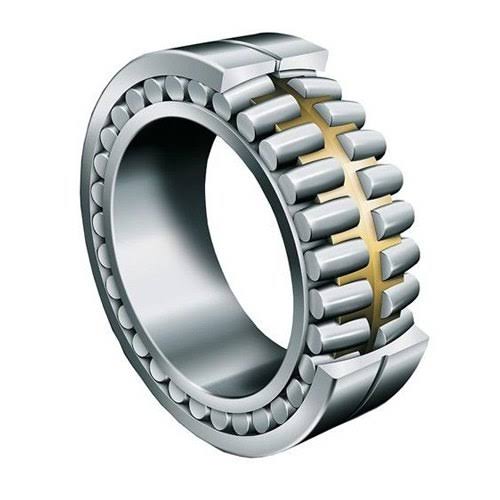

This rolling-element bearing allows for angular misalignment and low friction spinning. The ZKL- Spherical Roller Bearing usually supports a spinning shaft in the bore of the inner ring that is misaligned with the outer ring. The spherical internal form of the outer ring and spherical rollers make misalignment conceivable. The components of the Spherical Roller Bearing are mostly cylindrical, but they have a barrel-like profile that makes them look like slightly over-inflated cylinders. The Roller Bearings are made of an inner ring with two raceways angled to the bearing axis, an outer ring with a single spherical raceway, spherical rollers, cages, and internal guide rings or centre rings. These bearings can be sealed as well.
Product Specifications:
Brand: ZKL
Model: 22330CW33J
Product Type: Roller Bearing
Inside Diameter: 150 mm
Outside Diameter: 320 mm
Material: Chrome Steel
Key Features:
Lubricated to avoid friction
Energy-efficient solution
Widely used in mining, construction, and material handling industries.
