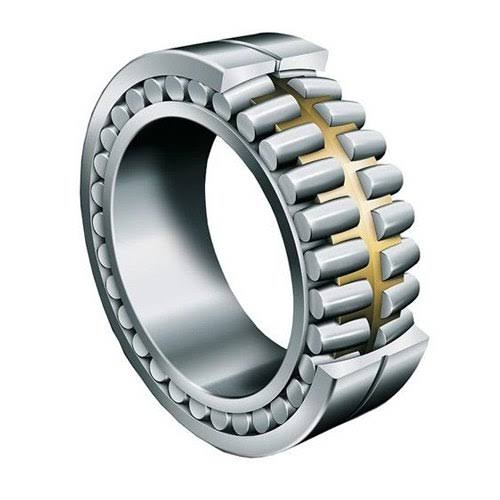

This ZKL - Spherical Roller Bearing comes with a cylindrical bore, an eccentricity of 0.032, a cone width of 33mm, and a cone angle of 16 deg. This spherical roller bearing has an internal clearance rating of C3. The roller bearing comprises the inner ring (22216) and the outer ring (EW33J). The inner ring has two rows of rollers, and the outer ring has one row. This configuration allows carrying greater loads than possible with only one row of rollers. Additionally, this design also helps to distribute loads evenly across the roller surface.
Product Specifications:
Brand: ZKL
Country of Origin: India
Model: 22216EW33J C3
product reference: 2002899
Product Type: spherical roller bearings
Bore: cylindrical
Internal diameter: 80mm
Outer diameter: 140 mm
Thickness: 33 mm
Charge dynamic: 246 Kn
Charge static: 295 Kn
Lim sp grease: 3200 min - 1
Lim sim speed: 4000 min - 1
Da min: 90 mm
Da max: 130 mm
Key Features:
Greater load-carrying capacity than a standard ball bearing
Roller configuration helps to distribute loads
Internal clearance rating of C3 for greater operational flexibility
