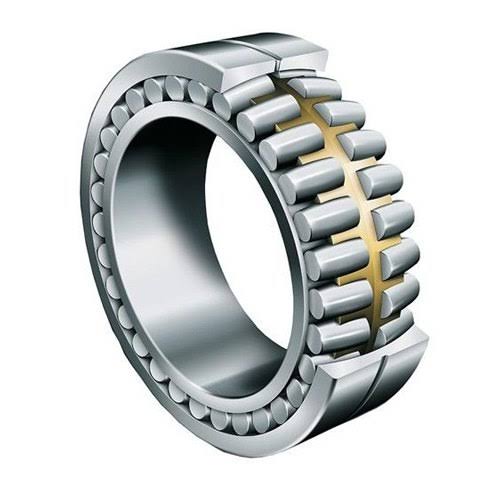

ZKL - Spherical Roller Bearing is a spherical roller bearing with double rows of 11 balls. The inner ring has two raceways, and the outer ring has three raceways. Single-row bearings have one raceway on each side, and double row bearings have two raceways per side. This Spherical Roller Bearing is applicable in either application. This Roller Bearing is an open type (with an internal clearance) for radial shafts. It accommodates axial loads and radial ones. Its design allows a fit into housing or onto a shaft by employing interference fits or pre-assembled units, including flanges, collars, and housings.
Product Specifications:
Brand: ZKL
Country of Origin: India
Model: 22211EKW33J
product reference: 4243073
Product Type: spherical roller bearings
Bore: tapered
Adapter sleeve: H311
Internal diameter: 55mm
Outer diameter: 100 mm
Thickness: 25 mm
Charge dynamic: 137 Kn
Charge static: 147 Kn
Lim sp grease: 4500 min - 1
Lim sim speed: 5600 min - 1
Da min: 64 mm
Da max: 91 mm
Key Features:
Single-row bearings have one raceway on each side. The double row bearings have two raceways per side, with diverse applications.
This ball bearing is an open type (with an internal clearance)
