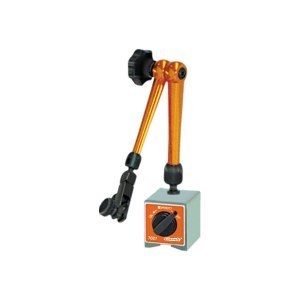

The Yamayo - Magnetic Stand is a Stand that uses a powerful magnetic fixture that uses one or sometimes more permanent magnets in a configuration that allows the external field of the magnet to be turned on or off by provided buttons. Metalworking industries, Lifting, robotics and optics industries have wide use of this Magnetic Stand. A round permanent magnet is inserted into the borehole of this Magnetic Stand, and a handle is attached to this tool to allow the rotation of the magnet. In this Magnetic Stand, while in the OFF position, the poles are oriented towards the non-ferrous core of it; hence the iron blocks act as the keepers by staying inside between both the poles. On the other hand, the poles are each in one iron half in the ON position, which happens to be an extension.
Product Specifications:
Brand: Yamayo
Origin: India
Product: Magnetic Stands
Colour: Orange and Black
Model: 7027 B
Magnetic Force: 80 KGF
Application Holding Stem Diameter: 8 mm
Dovetail Groove: Provided
Remarks: With fine adjustments
Key Features:
Non-Ferrous Core
High Magnetic force Generation
Handy
