Buy Wipro WGM 56400 - 1x400 W 56 Series Control Gear Box for HPMV Lamp Online

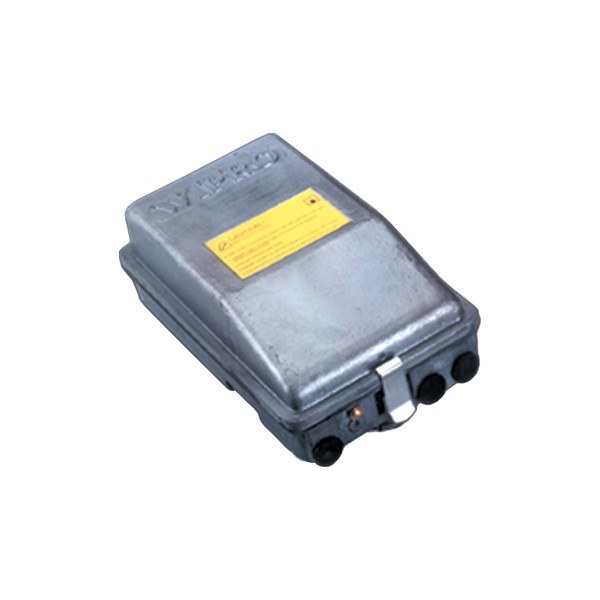

Wipro WGM 56400 - 1x400 W 56 Series Control Gear Box for HPMV Lamp


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Wipro WGM 56400 - 1x400 W 56 Series Control Gear Box for HPMV Lamp

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Benefits:

  • Option for re-wireable/ HRC type fuse of 15 amps
  • Superimposed pulse type ignitor

Features:

  • Compact and sturdy die-cast aluminium housing fitted with heavy duty copper wound ballast, PF capacitor and mains and lamp connectors
  • 2 nos. S.S. toggles are provided for easy maintenance and error free closing of cover
  • All external changes fasteners of S.S./brass
  • Suitable for 3/4” cable gland plugged with EPDM rubber plugs
  • Heat and HV resistant XLPE internal wiring
  • Conforms to IS 10322 Part 5/Sec 1 1: 1987
Product Specifications

GENERAL

Accessories & Controls:
Heavy duty copper wound ballast, 4 way 10 Amps. G.F.P. mains connector for 2.5 sq. mm. incoming cable, loop-in, loop-out wiring, 2 way 10 Amps. G.F.P. lamp connector, Earthing terminal for 14 SWG earthing wire 1 inside and 1 nos. external earthing termina
Applications:
Lighting Controls
Brand:
Wipro
Country of Origin:
India
Degree of Protection:
IP 65
IS Specification:
Conforms to IS 10322/Part 5/ Sec 1: 1987
Mains Current:
2.1 A
Model:
WGM 56400
Operating voltage AC:
240 V
Power:
1 x 400 W
Series Type:
56 Series
Suitable for:
HPMV (High-Pressure Mercury-Vapor Lamp)
Weight:
1.5 Kg
