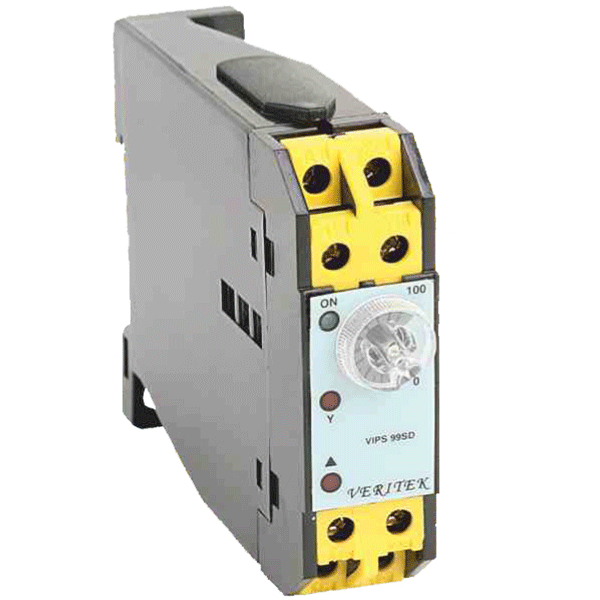

Veritek VIPS 99 SD - Star Delta Timer


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Veritek VIPS 99 SD - Star Delta Timer

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Veritek Star Delta Timer is a relay for timing the conversion of star circuit to delta circuit. Veritek VIPS 99 SD times both run up time and change over time from star to delta circuit. It is an essential component in electrical power testing because the circuit is converted from star orientation to delta orientation depending on the current and voltage level. Veritek Star Delta Timer starts the circuit with a star connection, and when the current and voltage rises, it’s converted to delta connection to minimize power loss. These accessories also help detect faulty lines to prevent damage, making it suitable for various testing & measuring procedures. In case of an error, Veritek Star Delta Timer trips at an instant to minimize the damage.

Product Attributes:

  • Dimensions: 22.5x77.5x105 mm
  • Run up Time: 0-30 / 60 seconds
  • Change over time: 500 / 100 msec
  • Customizable run up time and change over time
  • LED indication for star and delta relay

Benefits:

  • Low cost
  • Detection of faulty lines
  • Trips instantly to minimize damage
  • Consistently reliable with high accuracy
  • Compact size
Product Specifications

GENERAL

Accuracy:
+/-5 Percent
Auxiliary Supply:
230V AC and 415 V AC, 50-60Hz and 24V AC, DC
Brand:
Veritek
Change Over time:
50 - 100 m Sec
Manufacturer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Model:
VIPS 99 SD
Operating temperature:
-10 to 55 Deg C
Packer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Relay Contacts:
1 Potential free Contact
Reset Time:
Less than 100m Sec on power interruption
Run Up Time:
0 - 30,60 Sec.
Storage Temperature:
-20 to 75 Deg C
Weight:
120 grams
