Buy Veritek VIPS 98PF - Digital Earth leakage Unit Online
OUT OF STOCK

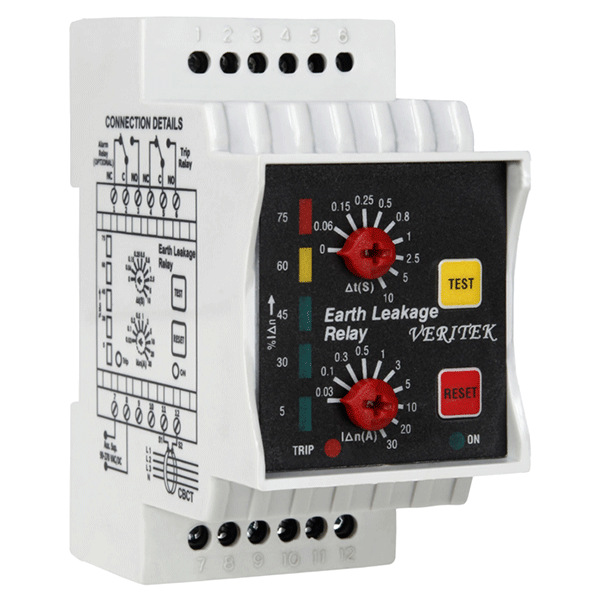

Veritek VIPS 98PF - Digital Earth leakage Unit


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Veritek VIPS 98PF - Digital Earth leakage Unit

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Veritek Digital Earth Leakage Unit is a safety device used in an electrical circuit vulnerable to high Earth impedance to prevent shocks. Veritek VIPS 98PF detects stray voltages and on metal enclosures of home appliances and interrupts the circuit if dangerous level of voltage is detected. These accessories are customisable by the user to alter the trip level and set timer delays. This device is equipped with Core Balance Current Transformer (CBCT) which alleviates testing & measuring by making detection of faults easier. Electrical Power Testing is consistently done by Veritek VIPS 98PF, allowing it to detect leakage current and prevent a hazard constantly. Nuisance trips and false alarms are at a minimum.

Product Attributes:

Dimensions: 40x90x75 mm
Supply Frequency: 50-60 Hz
Trip level and timer delay are user customisable
Supply Voltage: 90-270V AC,DC
Trip Relay Output: 80-90% of range

Benefits:

Regular leakage current detection
CBCT equipped
Door mounted
Prevents hazard
Less false alarms

Product Specifications

GENERAL

Brand:
Veritek
CBCT Sizes:
35 mm, 70 mm, 120 mm, 210 mm and any other rectangular or circular on request
Dimensions:
96x96x48 mm
Manufacturer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Model:
VIPS 98P
Packer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Set Point:
0.03,0.10, 0.30, 0.50, 1.0, 3.0, 5.0, 10.0, 20.0 and 30.0 A
Supply Frequency:
50-60 Hz
Supply Voltage:
90-270 V AC, DC
Trip Relay Output:
80-90 Percent of Range, 1 SPDT switch NO 5 A and 240 V AC, NC 5 A and 240 V AC
