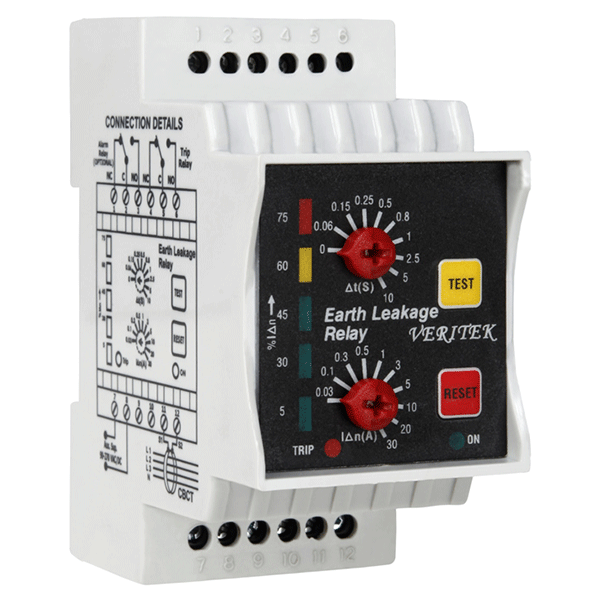

Veritek VIPS 98D - Earth Leakage Unit DIP Switch with CBCT


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Veritek VIPS 98D - Earth Leakage Unit DIP Switch with CBCT

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Veritek Earth Leakage Unit DIP Switch with CBCT is testing & measuring type safety device. It is integrated into an electrical connection which is susceptible to high Earth impedance to prevent electric shocks. Veritek VIPS 98D primarily detects stray voltages and current on metal enclosures of various appliances and interrupts the circuit if dangerous level of voltage is detected. It has a Dual In-line Package (DIP) switch to customise the device’s behaviour in specific situations, increasing its effectiveness and flexibility. These accessories are user customisable, and the trip level and set timer delays can be altered. Electrical Power Testing is constantly done by Veritek VIPS 98D, allowing it to detect leakage current and prevent a hazard instantaneously. Nuisance trips and false alarms are also at a minimum.

Product Attributes:

  • Dimensions: 96x96x48 mm
  • Supply Frequency: 50-60 Hz
  • Customisable trip level and timer delay
  • Supply Voltage: 90-270V AC,DC
  • Trip Relay Output: 80-90% of range
  • Equipped with DIP Switch

Benefits:

  • Constant leakage current detection
  • CBCT equipped
  • DIN Rail mounted
  • Prevents hazard
Product Specifications

GENERAL

Brand:
Veritek
CBCT Sizes:
35 mm, 70 mm, 120 mm, 210 mm and any other rectangular or circular on request
Dimensions:
96x96x48 mm
Manufacturer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Model:
VIPS 98P
Packer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Supply Frequency:
50-60 Hz
Supply Voltage:
90-270 V AC, DC
Trip Relay Output:
80-90 Percent of Range, 1 SPDT switch NO 5 A and 240 V AC, NC 5 A and 240 V AC
