Buy Veritek VIPS 98 - Analog Earth Leakage Unit Online
OUT OF STOCK
Veritek

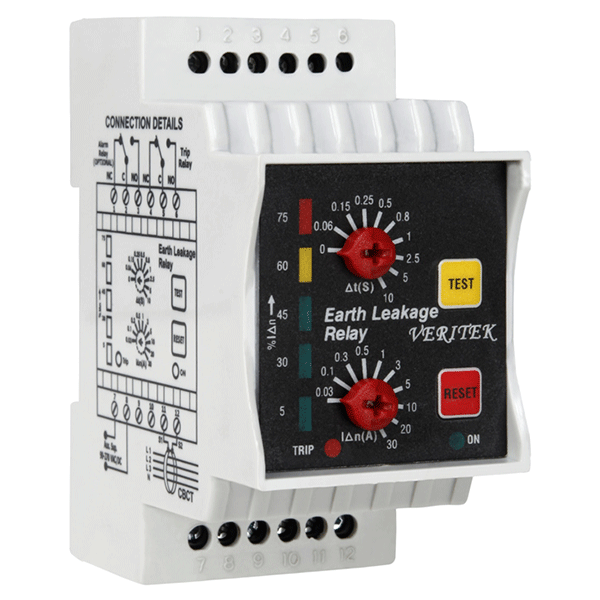

Veritek VIPS 98 - Analog Earth Leakage Unit


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Veritek

Veritek VIPS 98 - Analog Earth Leakage Unit

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Veritek Analog Earth Leakage Unit is a safety device employed in an electrical circuit susceptible to high Earth impedance to prevent shocks. Veritek VIPS 98 identifies stray voltages on metal enclosures of home appliances and interrupts the circuit if dangerous level of voltage is detected. These accessories can be customised by the user to change the trip level and set timer delays. This device is equipped with Core Balance Current Transformer (CBCT) which eases testing & measuring by making the detection easier. Electrical Power Testing is done regularly by Veritek VIPS 98, allowing it to detect leakage current and prevent a hazard constantly. Nuisance trips are also at a minimum.

Product Attributes:

Dimensions: 40x90x75 mm
Supply Frequency: 50-60 Hz
Customisable trip level and timer delay
Supply Voltage: 90-270V AC,DC
Trip Relay Output: 80-90% of range

Benefits:

Constant leakage current detection
CBCT equipped
DIN Rail mounted
Prevents hazard
Less nuisance trips

Product Specifications

GENERAL

Brand:
Veritek
CBCT Sizes:
35 mm, 70 mm, 120 mm, 210 mm
Contact Rating:
6 A, 230 V AC, 28 V DC
Dimensions:
45x90x75 mm
Leakage current:
via CBCT 0.03, 0.10, 0.30, 0.50, 1.0, 3.0, 5.0, 10.0, 20.0 and 30.0 A
Manufacturer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Model:
VIPS 98
Packer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Supply Frequency:
50-60 Hz
Supply Voltage:
90-270 V AC, DC
Trip Relay Output:
80-90 Percent of Range, 1 SPDT switch NO 5 A and 240 V AC, NC 5 A and 240 V AC
Trip time Delay:
0.04 to 10 sec
