Description

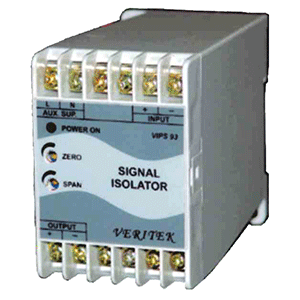

Veritek Signal Isolator is used to isolate electrical signals between the input circuit and the output circuit. It relays the signal to the output circuit through a transformer or an optical isolator. It is used to divide, amplify, safeguard, step-down, linearize, or digitize process signals. The output signal of Veritek VIPS 93 is highly accurate and extremely stable. These accessories have no power loss in the primary circuit, which makes them an economical choice for electrical power testing. It is suitable for various testing & measuring operations as it has a high bandwidth, high resistance to external interference, and excellent linearity. Veritek Signal Isolator has extensive industrial applications ranging from battery optimization to power meters.

Product Attributes:

  • Dimensions: 96x96 mm (Depth behind bezel - 55 mm, Panel Cut Out - 92x92 mm)
  • Auxiliary Supply: 230V/110V AC
  • Isolation: 2kV standard
  • Low internal power consumption
  • Compact DIN rail mounting
  • Multiple output provision

Benefits:

  • High accuracy
  • Excellent linearity
  • No power loss in the primary circuit
  • High bandwidth and resistance to external interference
  • Compact and economical
Product Specifications

GENERAL

Auxiliary Supply:
230 V, 110 V AC
Brand:
Veritek
Burden on aux:
Less than 3 V A
Dimensions:
96x96 mm, Depth behind bezzel - 55 mm, Panel Cut Out - 92x92 mm
Frequency:
50 Hz
Input Current:
DC 0-1 mA, 0-10 mA, 0-16 mA, 0-20 mA, 4-20 mA, 2-10 mA
Input Voltage:
DC 0-100 mV, 0-1 V, 0-5 V, 0-10 V
Isolation:
2 kV standard
Manufacturer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Model:
VIPS 93
Packer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Voltage tolerance:
-20 Percent to 15 Percent
