Buy Veritek VIPS 80L 60A 3P N C - 60 A Three Phase Multifunction Power Analyzer Meter Online
OUT OF STOCK

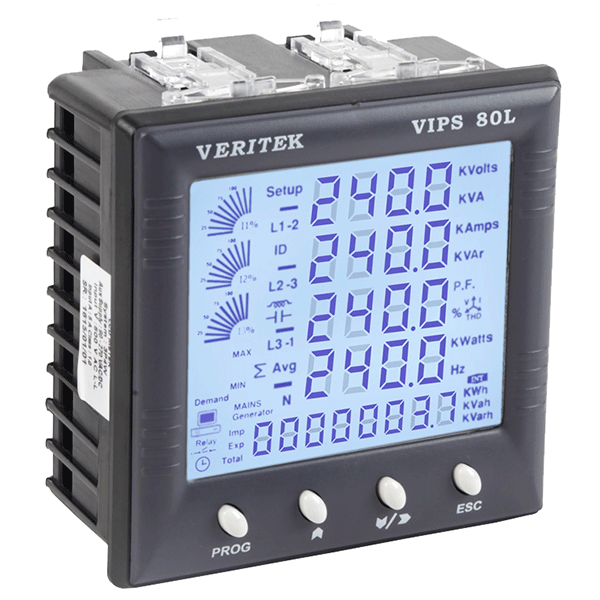

Veritek VIPS 80L 60A 3P N C - 60 A Three Phase Multifunction Power Analyzer Meter


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Veritek VIPS 80L 60A 3P N C - 60 A Three Phase Multifunction Power Analyzer Meter

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Veritek VIPS 80L 60A 3P N C - 60 A Three Phase Multifunction Power Analyzer Meter has been on state of the art microcontroller based design. These Power and energy meters feature Analyser LCD which has Backlight, Import export energy, bar graph display facility for Load Current and Optional port for Communication. Veritek Multifunction Power Analyzer Meter has multiple application options including control panels, distribution systems, Test bench, generator sets, Motor controls, test bench and many more.

Product Attributes:

  • External CT for 3 phase (N)
  • Power Analyzer.
  • Relay Output: 1 C/O relay for Maximum Demand.
  • Optional Communication port

Benefits:

  • True RMS measurement,
  • Protection using password
  • Maximum demand with relay contact,
  • Harmonic measure
  • Autoranging
  • Universal Auxiliary supply.
Product Specifications

GENERAL

AC voltage:
0-500 V AC
Accuracy Class:
+/- 0.5 Percent
Auxiliary Power Supply:
90-270 V, +/- 15 Percent
Brand:
Veritek
Current measurement:
0-60 Amp
Digit:
4 rows of 4 digits, 1 row of 8 digits
Dimensions:
96x96x55 mm
Display:
LCD Display with Backlight
Frequency Measurement:
50-60 Hz
Manufacturer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Material:
ABS Thermoplastic
Model:
VIPS 80L-60A-3P-N-C
Mount:
Flush Mounting with Side Clamp
Operating temperature:
-10 to 55 Deg C
Packer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Voltage Measurement:
0-300 V
Weight:
280 grams
