Buy Veritek VIPS 80EL 60A 3P N C - 60 A Three Phase Multifunction Power Analyzer Meter Online
OUT OF STOCK

Veritek VIPS 80EL 60A 3P N C - 60 A Three Phase Multifunction Power Analyzer Meter


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Veritek VIPS 80EL 60A 3P N C - 60 A Three Phase Multifunction Power Analyzer Meter

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

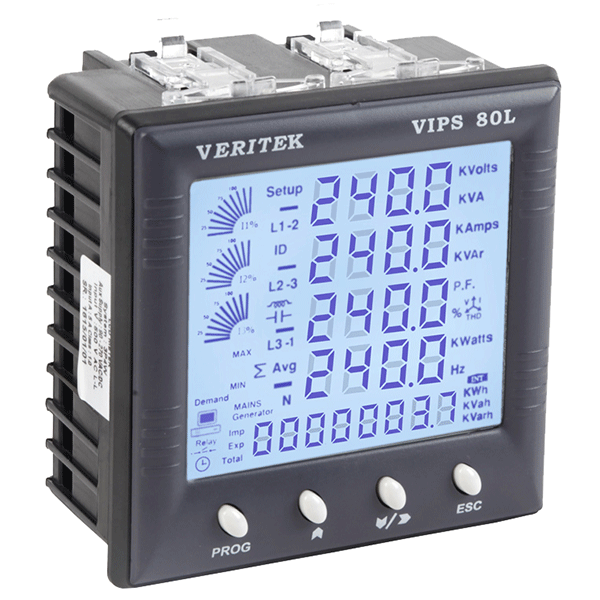

Veritek VIPS 80EL 60 A 3P N C-60A Power Analyzer is a three-phased meter, utilised for the function of analyzing power. It belongs to a class of Power & Energy Meters that have an LCD with backlight. It also features interface to connect master device, slave address, baud rate that can be programmable. The Veritek Multifunction Power Analyzer Meter helps to measure the exact direct current, alternating current, AC-voltage, DC-voltage, the intensity of the voltage, phase rotation and idle, apparent and effective power.

Product Attributes:

  • Current Measurement : 0-60 AMP
  • Material : ABS Thermoplastic
  • Operating temperature: -10 to 55 Degree Celsius
  • Voltage : 0-300V
  • Auxiliary Power supply : 90-270 V, +/- 15 %
  • Dimensions: 96x92x55 mm
  • Weight : 280 grams
  • Digit: 4 rows of 4 digits for Parameter, 4 rows of 8 digits for Energy


Benefits:

  • True RMS Measurement
  • Password protection enabled
  • Maximum demand with relay contact
  • Universal Auxiliary supply
  • Total & Individual measurement
  • Easy to wring with plug in connectors
  • Data can be connected to computers
Product Specifications

GENERAL

AC voltage:
0-500 V AC
Accuracy Class:
+/- 0.5 Percent
Auxiliary Power Supply:
90-270 V, +/- 15 Percent
Brand:
Veritek
Current measurement:
0-60 Amp
Digit:
4 rows of 4 digits for Parameter, 4 rows of 8 digits for Energy
Dimensions:
96x92x55 mm
Display:
LCD Display with Backlight
Frequency Measurement:
50-60 Hz
Manufacturer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Material:
ABS Thermoplastic
Model:
VIPS 80EL-60A-3P-N-C
Mount:
Flush Mounting with Side Clamp
Operating temperature:
-10 to 55 Deg C
Packer Details:
Veritek Engineering Pvt. Ltd., Plot No. 222, EL - Electronic Zone, T.T.C. Industrial Area, M.I.D.C., Mahape, Thane, Maharashtra-400701, India, Phone: +91-8448233444
Voltage Measurement:
0-300 V
Weight:
280 grams
